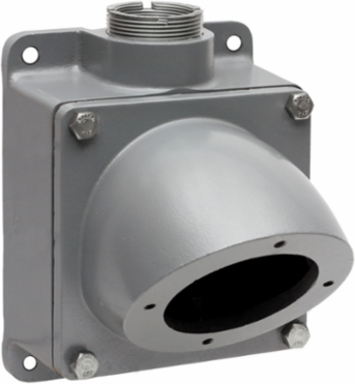

Hubbell Wiring Device-Kellems MB2004W Insulgrip Back Box for 200A with 2-1/2 Inch NPT Hub, Aluminum, 4-Way Angled
- MPN: MB2004W
- UPC: 783585011660
- PPN: HBL-MB2004W
- UNSPSC: 39121332
CAD
$1038.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade, Back Box, for 200A 2 ½" NPT Hub, Four Way Angled, Mounting Screws Included
Features
- Industrial Grade
- Accessories
- Back Box
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed
- Standards - RoHS Compliance Status
- CM
- Cable Entry
- Through Hub
- Number of Outlet
- Accepts 1-Device
- Standard
- UL Listed
- Type
- Four-Way Back Box
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Number Of Outlets
- Accepts 1-Device
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Construction
- Cast
- Series
- Back Boxes and Adapters Series
- BOX SIZE
- 7.700x13.300x9.400 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585011660
- Case Weight
- 10.050 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.200 in
- Pallet Weight
- 904.500 lb.
- NAICS Code
- 3359326103
Width9.400 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
ApplicationMetallic
Knockouts2 1/2" NPT Hub
Special FeaturesStandard Product
Temperature RangeLimited By Device
Engineering Drawing 1 Display TextMB2004W AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
Display SizeFor 200 Amp Devices
Style45 Degree
Description - InvoicePS, INS, 4WAY BOX, 200A, 2.5" HUB, ALUM
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareMounting Screws
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.050 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585011669
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
