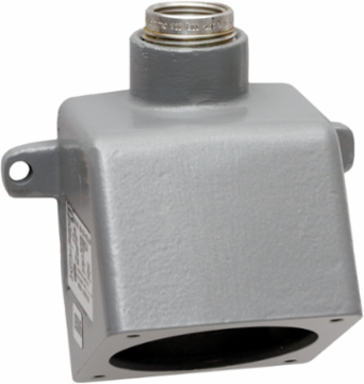

Hubbell Wiring Device-Kellems MB606W Insulgrip Feed-Thru Back Box, 60A, 1-1/2 Inch NPT Hub, Aluminum
- MPN: MB606W
- UPC: 783585010823
- PPN: HBL-MB606W
- UNSPSC: 39121332
CAD
$298.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Accessories, Back Box, For 60A 1 1/2" NPT Hub, Feed Thru, Mounting Screws Included, Gray Cast Aluminum
Features
- Industrial Grade
- Accessories
- Back Box
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- MB606W AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Width
- 6.900 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Application
- Metallic
- Knockouts
- 1 1/2" NPT Hub
- Special Features
- Standard Product
- Temperature Range
- Limited By Device
- Display Size
- For 60 Amp Devices
- Style
- Straight
- Description - Invoice
- PS, INS, FT BOX, 60A, 1 1/2" HUB, ALUM
- Harmonization Code
- 7616999999
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585010823
- Lowest Level UOM
- Each
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginChina
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
Cable EntryThrough Hub
Number of OutletAccepts 1-Device
StandardUL Listed
TypeFeed-Thru Back Box
Number Of OutletsAccepts 1-Device
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
ConstructionCast
SeriesBack Boxes and Adapters Series
BOX SIZE(in)
Each - Pack DescriptionEach
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Yes
