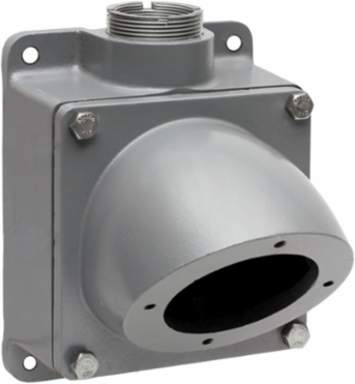

Hubbell Wiring Device-Kellems MB2003W Insulgrip Back Box 200A 2 Inch NPT Hub Four-Way Cast Aluminum
- MPN: MB2003W
- UPC: 783585011646
- PPN: HBL-MB2003W
- UNSPSC: 39121332
CAD
$1011.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade, Back Box, for 200A 2" NPT Hub, Four Way Angled, Mounting Screws Included
Features
- Industrial Grade
- Back Box
- For 200A 2" NPT Hub
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed
- Standards - RoHS Compliance Status
- CM
- Cable Entry
- Through Hub
- Number of Outlet
- Accepts 1-Device
- Standard
- UL Listed
- Type
- Four-Way Back Box
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Number Of Outlets
- Accepts 1-Device
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Construction
- Cast
- Series
- Back Boxes and Adapters Series
- BOX SIZE
- 7.900x13.300x9.500 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585011646
- Case Weight
- 6.013 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Width9.250 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
ApplicationMetallic
Knockouts2" NPT Hub
Special FeaturesStandard Product
Temperature RangeLimited By Device
Engineering Drawing 1 Display TextMB2003W AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
Display SizeFor 200 Amp Devices
Style45 Degree
Description - InvoicePS, INS, 4WAY BOX, 200A, 2" HUB, ALUM
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareMounting Screws
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.013 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet Height44.500 in
Pallet Weight490.975 lb.
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Yes
