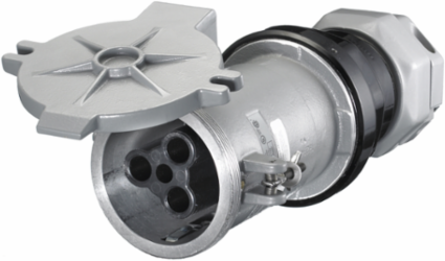

Hubbell Wiring Device-Kellems HBL4200CS1W Insulgrip Female Connector Body, 200A 600V AC, 3-Pole 4-Wire Grounding
- MPN: HBL4200CS1W
- UPC: 783585011462
- PPN: HBL-HBL4200CS1W
- UNSPSC: 39121421
CAD
$3080.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 200A 600V AC, 3-Pole 4-Wire Grounding Style 1,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 200 A
- Number of Poles
- 3-Pole
- Temperature Rating
- -40°C to 75°C
- Seal Type
- Neoprene, Spring-loaded gasketed cover
- Connectivity
- Pressure Terminal Screws
- Standards
- UL 1682, CSA C22.2 No. 182.1, UL Listed, CSA Certified Type 4X, RoHS Compliant
- Moisture Resistance
- Type 3, 4, 4X Watertight
Voltage600 VAC / 250 VDC
Number of Wires4-Wire Grounding
Conductor Range#1 AWG to #250 MCM
Grounding StyleStyle 1
MaterialComposite
Flammability RatingUL 94V-0, CSA C22.2 No. 0.17
Country of OriginUS
