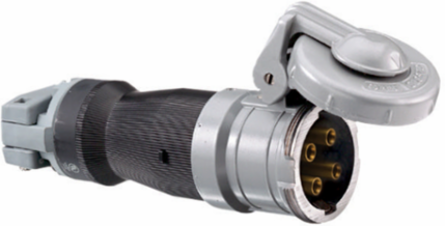

Hubbell Wiring Device-Kellems HBL360CS2WR Insulgrip Female Connector Body 60A 600V AC 2-Pole 3-Wire Grounding
- MPN: HBL360CS2WR
- UPC: 783585012179
- PPN: HBL-HBL360CS2WR
- UNSPSC: 39121421
CAD
$1004.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 60A 600V AC, 2-Pole 3-Wire Grounding Style 2,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- Number of Poles
- 2-Pole
- Temperature Rating
- -40°C to 75°C
- Material
- Composite
- Housing Material
- Valox 357
- Cord Clamps Material
- Rynite SST35
- Gland Material
- Neoprene
- Moisture Resistance
- Type 3, 4, 4X
- Country of Origin
- US
Voltage600 VAC/250 VDC
Number of Conductors3-Wire Grounding Style 2
Width4.810 in
Seal TypeO-Ring, Neoprene Gasket
Connector Shroud MaterialEpoxy Painted Aluminum
Clamp Nut MaterialNickel Plated Brass
Flammability RatingUL 94V-0
CertificationsUL Listed, CSA Certified
ConnectivityPressure Terminal Screws
