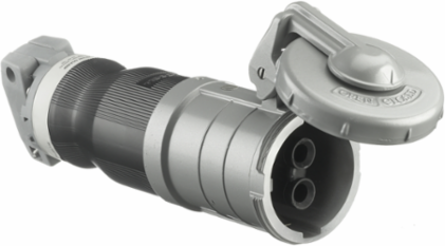

Hubbell Wiring Device-Kellems HBL330CS1W Insulgrip Female Connector, 30A 600V AC, 2-Pole 3-Wire Grounding
- MPN: HBL330CS1W
- UPC: 783585010021
- PPN: HBL-HBL330CS1W
- UNSPSC: 39121421
CAD
$537.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 30A 600V AC, 2-Pole 3-Wire Grounding Style 1,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 600 VAC / 250 VDC
- Number of Poles
- 2-Pole
- Grounding Style
- Style 1
- Dielectric Voltage
- 3000 V AC
- Box Size
- 9.755x23.125x9.505 in
- Material
- Composite
- Connector Shroud Material
- Epoxy Painted Aluminum
- Clamp Nut Material
- Nickel Plated Brass
- Style
- Standard Service, Style 1
- Type
- Watertight Connector
- Flammability Rating
- UL 94V-0
- Standards
- UL 1682, CSA C22.2 No. 182.1
- Country of Origin
- PR
Amperage30 A
Number of Conductors3-Wire Grounding
Operating Temperature-40°C to 75°C
Width4.300 in
Conductor Range#10 AWG to #8 AWG
Housing MaterialValox 357
Cord Clamps MaterialRynite SST35
Cover Gasket MaterialNeoprene
Material - Mounting HardwareCord Mounted
ConnectivityPressure Terminal Screws
NEMA RatingNon-NEMA
ComplianceUL Listed, CSA Certified, Type 4X
ApplicationMetallic with Nylon Shroud
