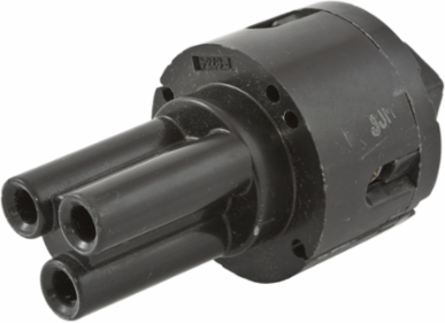

Hubbell Wiring Device-Kellems IN330FS1 Insulgrip Female Pin & Sleeve Device 30A 3-Wire, Watertight
- MPN: IN330FS1
- UPC: 783585323909
- PPN: HBL-IN330FS1
- UNSPSC: 39121406
CAD
$263.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Replacement Interior, For 30A 3-Wire Style 1, Furnished with Screws, Black Thermoset Polyester
Features
- Thermoset polyester contact carrier
- Pin Chamber confines arcing within the interior
- Large, funneled terminal entrance holes
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.418 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Environmental Conditions
- Watertight When Installed
- Number of Poles
- 2-Pole
- Special Features
- Watertight
- Type
- Replacment Interior
- Voltage Rating Description
- 600/250V AC/DC
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- For Receptacles/Connectors, Style 1
- Description - Invoice
- PS, INS, REPL, INTERIOR, FEM 3W, 30A S1
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Accessories
- BOX SIZE
- 5.900x8.600x7.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585323909
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating30 A
Industry Standard(s)UL Listed
Amperage Rating30 A
NEMA RatingNon-NEMA
Number of Wires3-Wire
StandardUL Listed
Voltage Rating600/250V AC/DC V
General Literature Asset 1 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires3-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
