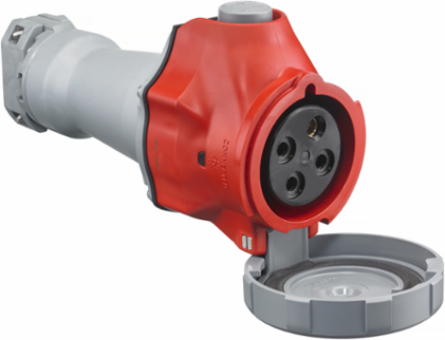

Hubbell Wiring Device-Kellems HBLS430C6W IEC Pin and Sleeve Switched Female Connector 30A 3-Pole 4-Wire Watertight
- MPN: HBLS430C6W
- UPC: 783585550442
- PPN: HBL-HBLS430C6W
- UNSPSC: 39121402
CAD
$863.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Pin and Sleeve Devices, Switched, IEC 309,Female Connector, 30A 380-415V, 3-Pole 4-Wire Grounding, NEMA 4X/IP67,Watertight
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Documentation & Downloads
Specifications
Additional
- Amperage
- 30/32 A
- Poles
- 3-Pole
- Operating Temperature Range
- -40°C to 75°C
- Type
- Watertight Connector
- Current Interrupting
- Certified for full rated current
- Max Working Voltage
- 600V RMS
- Flammability Rating
- V-0
- Standards Compliance
- UL Listed, CSA Certified, IEC 60309-1, IEC 60309-2
- Series
- Advantage® Switch-Rated
- Country of Origin
- US
Voltage380-415 VAC
Wires4-Wire
Size / Dimensions5.000 in width
MaterialHousing: PBT; Cord Clamps: PBT; Glands: Solid Neoprene; Covers: PBT; Gasket: Santoprene
Dielectric Voltage3000V AC
Impact ResistancePer CSA C22.2 No. 182.1 / UL1682
Ingress ProtectionType 3R, 3RX, 4X, IP68, IP69K, NEMA 4X
Moisture Resistance StandardIEC 60309-1
ColorRed
