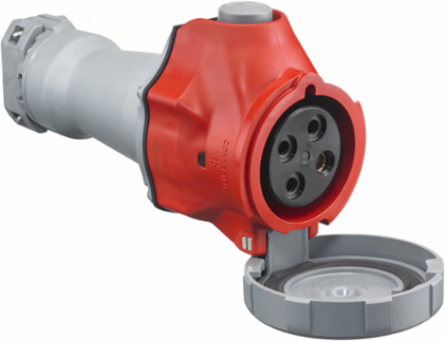

Hubbell Wiring Device-Kellems HBLS432C3W 32A Watertight IEC Pin and Sleeve Switched Female Connector, 3-Pole 4-Wire
- MPN: HBLS432C3W
- UPC: 783585550626
- PPN: HBL-HBLS432C3W
- UNSPSC: 39121402
CAD
$863.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Pin and Sleeve Devices, Switched, IEC 309,Female Connector, 32A 380-480V, 3-Pole 4-Wire Grounding, NEMA 4X/IP67,Watertight
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 4.810 in
- Color
- Red
- Number of Wires
- 4-Wire
- Voltage Rating
- 380-440 VAC
- Engineering Drawing 1 Display Text
- HBLS432C3W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Advantage™ Series Switch-Rated IEC Pin & Sleeve Devices
- Number Of Poles
- 3-Pole
- Style
- IP69k NEMA 4X
- Description - Invoice
- PS, IEC, SW CONN, 3P4W, 32A 380-480V, WT
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Series
- Advantage® Series
- BOX SIZE
- 10.745x23.125x10.745 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585550626
- NAICS Code
- 335931A104
Current / Amperage Rating32 A
Amperage Rating32 A
Number of Poles3-Pole
TypeWatertight Connector
Voltage Rating Description380-440 VAC
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPulp & Paper Solutions
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Base Unit of MeasureEA
Carton - Gross Weight per Pack19.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Certifications
- EU RoHS Indicator
- Contact Manufacturer
