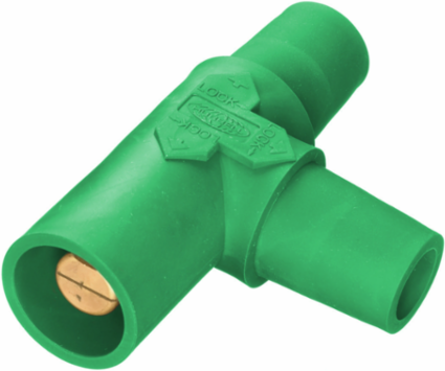

Bryant HBLTGN Heavy Duty Industrial Tapping Tee, 400A AC/DC, Brass & Elastomer, Insulated Body
- MPN: HBLTGN
- UPC: 783585174204
- PPN: HBL-HBLTGN
- UNSPSC: 39121710
CAD
$201.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Single Pole Industrial Grade, Female-Female-Male, Tapping "Tee", 300/400A 600V AC/DC, Single Conductor, Pre-Wired
Features
- Industrial Grade
- Female-Female-Male
- Tapping "Tee
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 3.190 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
- Application
- High Ampacity
- Insulation
- Insulated Body
- Operating Temperature
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Standard
- UL 498 And UL1691
- Wattage
- 360000
- Number Of Pins
- 1) In, 2) Out- Male-Female-Female
- Description - Invoice
- SINGLEPOLE, TAPPING T, FEM-FEM-MALE, GN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material
- Brass and Elastomer
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Pallet - GTIN - Package
- 70783585174203
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating400 A
Industry Standard(s)UL 498 And UL1691
Amperage Rating400 A
ColorGreen
Number of Pins1) In, 2) Out- Male-Female-Female
Special FeaturesStandard Product
TypeTees and 3-Fers
Voltage Rating Description600V AC/DC
StyleTapping Tee Female-Female-Male
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating400 A
Series16 Series
BOX SIZE3.800x15.400x8.800 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585174204
Case Weight10.650 lb.
Pallet Height45.600 in
Pallet Weight1789.200 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
