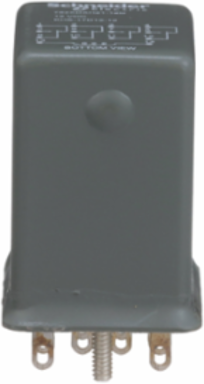

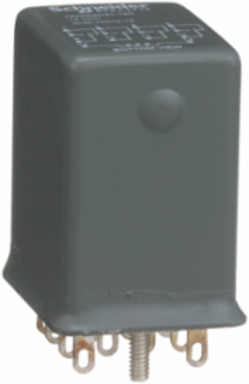

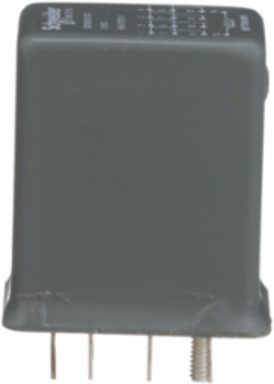

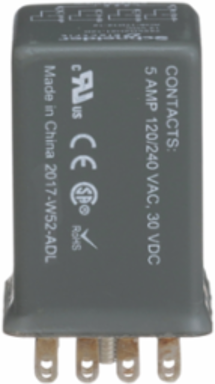

Schneider Electric 782XDXH21-24D Hermetically sealed plug-in relays, SE Relays, 5A, 4 CO, 24VDC
- MPN: 782XDXH21-24D
- PPN: SCH-782XDXH21-24D
CAD
$189.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 5A 4 CO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 650Ω. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The silver alloy 4PDT configuration gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore, United States

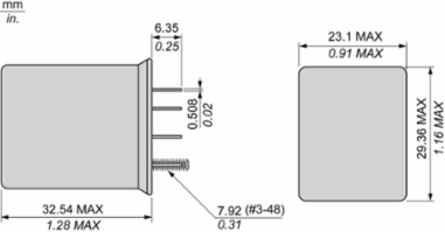

Depth28.75 mm
Complementary Attributes
- Minimum Switching Current
- 500 mA 12 V AC, 500 mA 12 V DC
- Line Rated Current
- 5 A
- Maximum Switching Voltage
- 240 V AC
Control Circuit TypeDC
Maximum Resistance650 Ohm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles
- Control Circuit Voltage
- 24 V
- [Ie] Rated Operational Current
- 5 A at 120 V AC (on resistive load), 5 A at 240 V AC (on resistive load)5 A at 30 V DC (on resistive load)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0058844896900531705, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.007550849435870834, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 9 kg CO2 eq., 8.620338983050845
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Associated Fuse Rating
- 6 A gG at 400 V coordination type 2 for power circuit
- Average Impedance
- 2 mOhm
- Contacts Material
- silver alloy contacts
- Contacts Usage
- hermetically sealed
- Electrical Durability
- 100000 cycles resistive IEC
- Local Signalling
- without LED without lockable test button
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Response Time
- 20 ms
- Series Name
- 782H series
- Shock Resistance
- 10 gn
- Status Led
- without
- Total Lifecycle Carbon Footprint
- 9 kg CO2 eq.
- Control Circuit Type2
- DC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- 782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 32.5 mm
- [Ithe] Conventional Enclosed Thermal Current
- 5 A
- Short-circuit Current
- 1 kA
- Package Weight(Lbs)
- 45.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contacts Composition4 C/O
Certificate AgencyUL, CSA, CE
[Uc] Control Circuit VoltageDC, 24 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.07257774607703282
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.6187602126831798
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Average Coil Consumption0.90 W
Catalog Class782H
Contacts Type And Composition4 C/O
Control Typewithout lockable test button
Environmental Characteristichazardous location T5 70 °C
Mechanical Durability10000000 cycles
Product Or Component Typeplug-in relay
Relay Typehermetically sealed relay
ReturnabilityYes
Shape Of Pinflat (faston type)
Software Versionv5.9.4
Sustainable PackagingYes
Vibration Resistance6 gn 10-55 Hz)
Pep CodeENVPEP2403024EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Unit1
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %43
Width Nominal22.75 mm
Connections - Terminalsplug in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -45-70 °C, -45-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 9.325112280936981
- Environmental Disclosure
- ENVPEP2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403024EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-60-85 °C, -60-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2403024EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
