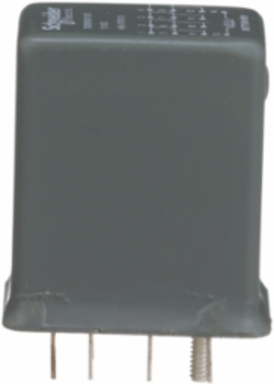

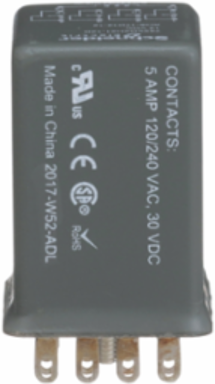

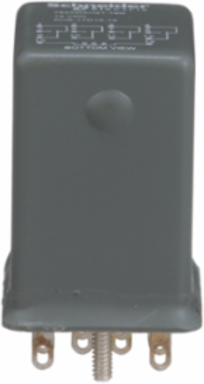

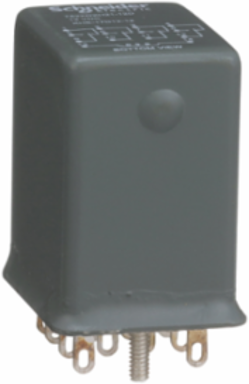

Schneider Electric 782XDXH21-240A Hermetically sealed plug-in relays, SE Relays, 5A, 4 CO, 240VAC
Schneider Electric 782XDXH21-240A Hermetically sealed plug-in relays, SE Relays, 5A, 4 CO, 240VAC
- MPN: 782XDXH21-240A
- PPN: SCH-782XDXH21-240A
- UNSPSC: 39122315
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$210.40/ EA
Description
This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 5A 4 CO contact configuration mechanical relay with nominal coil voltage of 240Vac and coil resistance of 12000Ω. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The silver alloy 4PDT configuration gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.
Features
- The electromechanical relays help to reduce the size of enclosures and at the same time increase machine reliability
- Compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D
- Simultaneous control of up to 4 separate circuits
- Multiple type of Socket-mounting options; simplified installation and maintenance
- This range offers several terminal types, wide choice of control voltage, and flexible add-on accessories
Specifications
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Minimum Switching Current
- 500 mA 12 V AC, 500 mA 12 V DC
- Line Rated Current
- 5 A
- Maximum Resistance
- 12000 Ohm
Control Circuit TypeAC
Maximum Switching Voltage240 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles
- Uc Control Circuit Voltage2
- 240 V AC, 240 V
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Associated Fuse Rating
- 6 A gG at 400 V coordination type 2 for power circuit
- Average Impedance
- 2 mOhm
- Contacts Type And Composition
- 4 C/O
- Control Type
- without lockable test button
- Environmental Characteristic
- hazardous location T5 40 °C
- Mechanical Durability
- 10000000 cycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Response Time
- 20 ms
- Series Name
- 782H series
- Shock Resistance
- 10 gn
- Status Led
- without
- Vibration Resistance
- 6 gn 10-55 Hz)
- Connections Terminals
- plug in
- Stocking Flag
- Y
- Pep Code
- ENVPEP2403024EN
- Global Commercial Status
- Commercialised
- Ithe Conventional Enclosed Thermal Current5
- 5 A
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Ie Rated Operational Current25 A at 120 V AC (on resistive load), 5 A at 240 V AC (on resistive load), 5 A at 30 V DC (on resistive load)
Ie Rated Operational Current55 A at 120 V AC (on resistive load), 5 A at 240 V AC (on resistive load), 5 A at 30 V DC (on resistive load)
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Average Coil Consumption1.20 VA
Contacts Materialsilver alloy contacts
Contacts Usagehermetically sealed
Electrical Durability100000 cycles resistive IEC
Local Signallingwithout LED without lockable test button
Package Weight Lbs45.0 g
Product Or Component Typeplug-in relay
Relay Typehermetically sealed relay
ReturnabilityNo
Shape Of Pinflat (faston type)
Short Circuit Current1 kA
Sustainable PackagingYes
Ithe Conventional Enclosed Thermal Current25 A
Medium DescHermetically sealed plug-in relays, SE Relays, 5A, 4 CO, 240VAC
Product Kit IdentifierN
Catalog Class782H
Connections Terminals3plug in
Uc Control Circuit Voltage5240 V AC
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -45-70 °C
- Circularity Profile
- ENVEOLI2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2403024EN
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-60-85 °C
Environmental DisclosureENVPEP2403024EN
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
Specifications

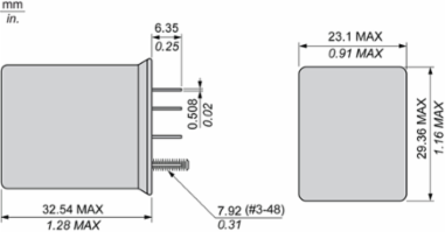

- Depth
- 28.75 mm
