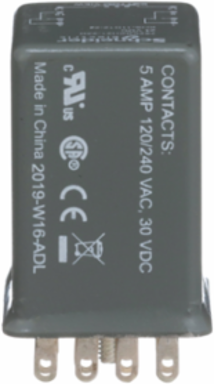

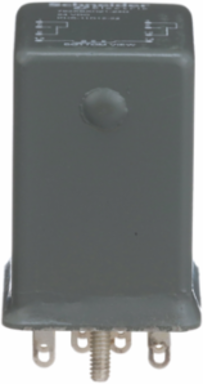

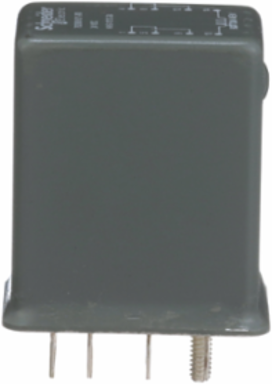

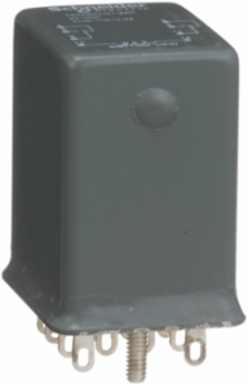

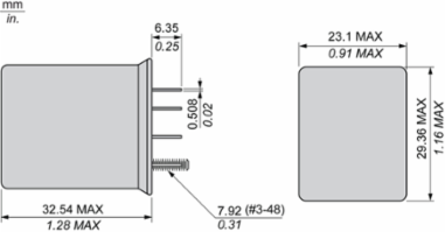

Schneider Electric 782XBXH21-24D Hermetically sealed plug-in relays, SE Relays, 5A, 2 CO, 24VDC
- MPN: 782XBXH21-24D
- PPN: SCH-782XBXH21-24D
CAD
$155.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 5A 2 CO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 650Ω. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The silver alloy 4PDT configuration gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth28.75 mm
Complementary Attributes
- Minimum Switching Current
- 500 mA 12 V AC, 500 mA 12 V DC
- Line Rated Current
- 5 A
- Maximum Switching Voltage
- 240 V AC
Control Circuit TypeDC
Maximum Resistance650 Ohm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles
- Control Circuit Voltage
- 24 V
- [Ie] Rated Operational Current
- 5 A at 120 V AC (on resistive load), 5 A at 240 V AC (on resistive load)5 A at 30 V DC (on resistive load)
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Coil Consumption
- 0.90 W
- Catalog Class
- 782H
- Contacts Type And Composition
- 2 C/O
- Control Type
- without lockable test button
- Environmental Characteristic
- hazardous location T5 70 °C
- Mechanical Durability
- 10000000 cycles
- Product Or Component Type
- plug-in relay
- Relay Type
- hermetically sealed relay
- Returnability
- Yes
- Shape Of Pin
- flat (faston type)
- Status Led
- without
- Vibration Resistance
- 6 gn 10-55 Hz)
- Pep Code
- ENVPEP2403024EN
- Width Nominal
- 22.75 mm
- Connections - Terminals
- plug in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490050
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contacts Composition2 C/O
Certificate AgencyUL, CSA, CE
[Uc] Control Circuit VoltageDC, 24 V
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Associated Fuse Rating6 A gG at 400 V coordination type 2 for power circuit
Average Impedance2 mOhm
Contacts Materialsilver alloy contacts
Contacts Usagehermetically sealed
Electrical Durability100000 cycles resistive IEC
Local Signallingwithout LED without lockable test button
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Electromechanical Relays
Response Time20 ms
Series Name782H series
Shock Resistance10 gn
Sustainable PackagingYes
Control Circuit Type2DC
Height Nominal32.5 mm
[Ithe] Conventional Enclosed Thermal Current5 A
Short-circuit Current1 kA
Package Weight(Lbs)45.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -45-70 °C, -45-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2403024EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-60-85 °C, -60-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2403024EN
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
