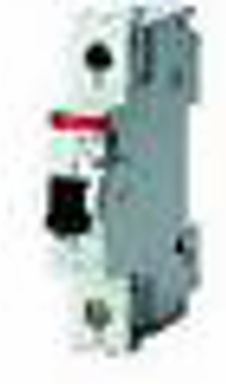

ABB S281UC-Z1.6FS High Performance Miniature Circuit Breaker, 1.6 Amps, 1 Pole, 250/500 VDC
- MPN: S281UC-Z1.6FS
- UPC: 088861408333
- PPN: ABB-S281UC-Z1.6FS
CAD
$269.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Miniature Circuit Breaker, Supplemental Protector, Rated Current 1.6 Amps, 1 Pole, Interrupt Rating 6 kA (IEC, CSA 22.2 No. 235) and 10 kA UL 1077, Thermal Magnetic Trip Curve Z, Electromechanic and/or Thermal Tripping Mechanism for Short Circuit Protection, Voltage up to 250/500 VDC, DIN Rail Mounted (FS Series), Finger Safe and Multi-Function Terminals
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121603 Miniature circuit breakers
- Brand Name
- ABB
- Special Features
- DIN Rail Mounting, Finger Safe and Multi-Function Terminals
- Standard
- UL 1077, CSA 22.2 No. 235
- Amperage Rating
- 1.6 Amps
- Trip Type
- Z
- Number Of Poles
- 1
- Length
- 68 mm
- Height
- 90 mm
IGCC4897 Miniature circuit breakers
TypeHigh Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
ApplicationDesigned to Provide Maximum Protection with a Very Low Short Circuit Trip Setting; Example: Semiconductors, Control Circuits
Voltage Rating250/500 VDC
Frequency Rating50/60 Hertz
Interrupt Rating6 kA
Auxiliary ContactsYes
Width17.5 mm
Operating Temperature-25 to +55 Degrees Celcius
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
