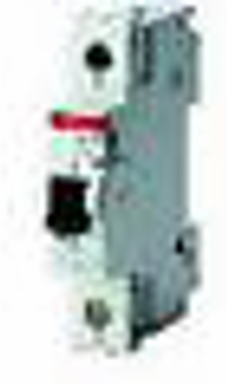

ABB S282UC-K20FS High Performance Miniature Circuit Breaker, 20 Amps, 2 Pole, 6 kA
- MPN: S282UC-K20FS
- UPC: 888614083356
- PPN: ABB-S282UC-K20FS
CAD
$397.85
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Miniature Circuit Breaker, Supplemental Protector, Rated Current 20 Amps, 2 Pole, Interrupt Rating 6 kA (IEC, CSA 22.2 No. 235) and 10 kA UL 1077, Thermal Magnetic Trip Curve K, Electromechanic and/or Thermal Tripping Mechanism for Short Circuit Protection, Voltage up to 250/500 VDC, DIN Rail Mounted (FS Series), Finger Safe and Multi-Function Terminals
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121603 Miniature circuit breakers |
|---|---|
| Brand Name | ABB |
| Special Features | DIN Rail Mounting, Finger Safe and Multi-Function Terminals |
| Standard | UL 1077, CSA 22.2 No. 235 |
| Amperage Rating | 20 Amps |
| Trip Type | K |
| Number Of Poles | 2 |
| Length | 68 mm |
| Height | 90 mm |
| IGCC | 4897 Miniature circuit breakers |
|---|---|
| Type | High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection |
| Application | Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers |
| Voltage Rating | 250/500 VDC |
| Frequency Rating | 50/60 Hertz |
| Interrupt Rating | 6 kA |
| Auxiliary Contacts | Yes |
| Width | 35 mm |
| Operating Temperature | -25 to +55 Degrees Celcius |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
