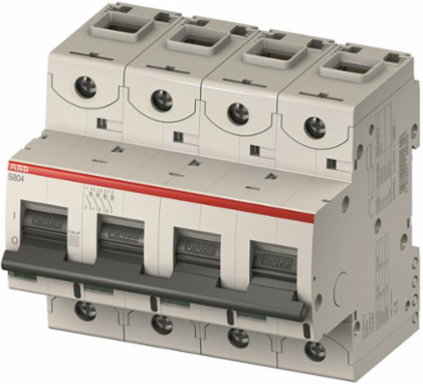

ABB S804S-D63 High Performance Miniature Circuit Breaker, 63 Amps, 4 Pole, 50 kA
- MPN: S804S-D63
- UPC: 804325462907
- PPN: ABB-S804S-D63
CAD
$787.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Performance Miniature Circuit Breaker with Cage Terminal, Rated Current 63 Amps, 4 Pole, Trip Curve D, Voltage up to 400/690 VAC, Ultimate Short-Circuit Breaking Capacity 50 kA, IEC/EN 60947-2
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121603 Miniature circuit breakers
- Brand Name
- ABB
- Special Features
- DIN Rail Mounting, Finger Safe and Multi-Function Terminals, Ring Tongue Compatible
- Standard
- IEC 60947-2
- Amperage Rating
- 63 Amps
- Trip Type
- D
- Number Of Poles
- 4
- Length
- 88.5 mm
- Height
- 95 mm
IGCC4897 Miniature circuit breakers
TypeHigh Performance MCB with Cage Terminal
ApplicationDesigned for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Voltage Rating400/690 VAC
Frequency Rating50/60 Hertz
Interrupt Rating50 kA
Auxiliary ContactsYes
Width106 mm
Operating Temperature-25 to +60 Degrees Celcius
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
