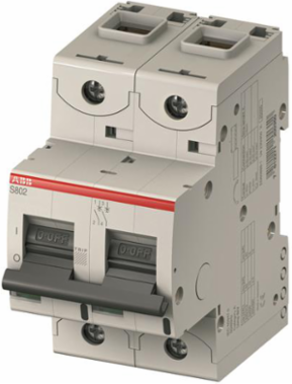

ABB S802S-K63 High Performance Miniature Circuit Breaker, 63 Amps, 2 Pole, 50 kA
- MPN: S802S-K63
- UPC: 804325465786
- PPN: ABB-S802S-K63
CAD
$417.40
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Performance Miniature Circuit Breaker with Cage Terminal, Rated Current 63 Amps, 2 Pole, Trip Curve K, Voltage up to 400/690 VAC, Ultimate Short-Circuit Breaking Capacity 50 kA, IEC/EN 60947-2
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121603 Miniature circuit breakers |
|---|---|
| Brand Name | ABB |
| Special Features | DIN Rail Mounting, Finger Safe and Multi-Function Terminals, Ring Tongue Compatible |
| Standard | IEC 60947-2 |
| Amperage Rating | 63 Amps |
| Trip Type | K |
| Number Of Poles | 2 |
| Length | 88.5 mm |
| Height | 95 mm |
| IGCC | 4897 Miniature circuit breakers |
|---|---|
| Type | High Performance MCB with Cage Terminal |
| Application | Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers |
| Voltage Rating | 400/690 VAC |
| Frequency Rating | 50/60 Hertz |
| Interrupt Rating | 50 kA |
| Auxiliary Contacts | Yes |
| Width | 53 mm |
| Operating Temperature | -25 to +60 Degrees Celcius |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
