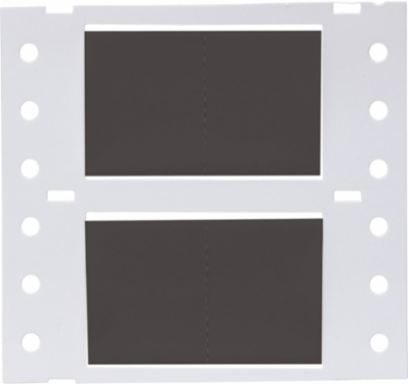

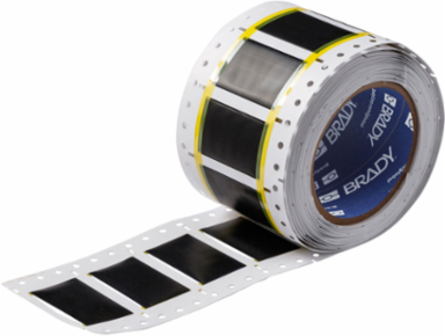

Brady 2HT-750-2-BK-S-2 High Temp PermaSleeve PVDF Wire Marking Sleeves, 0.75" Dia x 1" W, Black
Brady 2HT-750-2-BK-S-2 High Temp PermaSleeve PVDF Wire Marking Sleeves, 0.75" Dia x 1" W, Black
- MPN: 2HT-750-2-BK-S-2
- UPC: 662820653479
- PPN: BRD-2HT-750-2-BK-S-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$850.31/ EA
Description
PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
Features
- 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
- Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
- Operating temperature range of -67 to 437° F (-55 to 225° C)
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 2
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R4400W; R6800
- Trade Name
- PermaSleeve®
- Indoor or Outdoor Use
- Outdoor Use
- Material
- High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.75 in
- Dimensions
- 1.25 in H
- Dimensions 2
- 1.25 in H
- Height (mm/cm/m)
- 31.8 mm
- Maximum Service Temperature °F
- 437 °F
- Maximum Wire Diameter (mm/cm/m)
- 17.8 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.375 in
- Minimum Wire Gauge
- 2 AWG
- Recovered Diameter (mm/cm/m)
- 9.5 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (mm/cm/m)
- 19.1 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Wire Diameter Range
- 0.375 in to 0.7 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202G; NASA SP-R-0022A; SAE-AMS-DTL-23053; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Quantity per Roll200
Recommended RibbonIP-R4400-WT; R4400-WT
Sleeve SlitsYes
Total Quantity200
Brady Material NumberB-345
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-345
Diameter as Supplied (mm/cm/m)19.1 mm
Dimensions (Metric)31.8 mm H
Height (in/ft/yd)1.25 in
Maximum Service Temperature °C225 °C
Maximum Wire Diameter (in/ft/yd)0.7 in
Maximum Wire Gauge4/0 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)9.5 mm
Recovered Diameter (in/ft/yd)0.375 in
Roll Width (in/ft/yd)2 in
Sleeve Size (in/ft/yd)0.75 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat1.625 in
Wire Gauge Range2 AWG to 4/0 AWG
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
