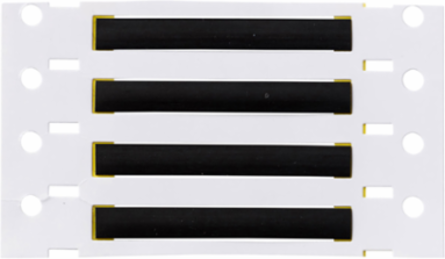

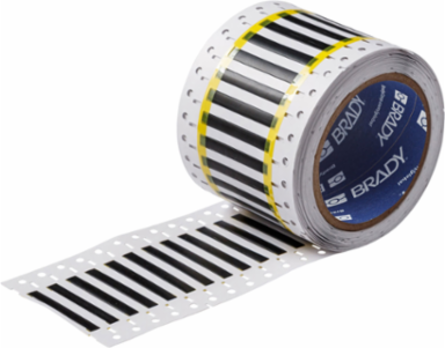

Brady 2HT-125-2-BK-S High Temp PermaSleeve PVDF Wire Marking Sleeves, Black, 0.125" Dia x 2" W

MPN: 2HT-125-2-BK-S
UPC: 662820922124
PPN: BRD-2HT-125-2-BK-S
UNSPSC: 55121612

$1309.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.

Features

2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
Operating temperature range of -67 to 437° F (-55 to 225° C)

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Wire and Cable Labeling
Color	Black
Finish	Matte
Label/Media Format	Roll
Primary Noun, Basic Function	Sleeve
Printable Sides	Double-Side Printable
Printer Compatibility	BBP72
Quantity per Roll	500
Recommended Ribbon	IP-R4400-WT; R4400-WT
Shrink Ratio	2:1
Total Qty per Pack	500 Label(s) / Roll
Trade Name	PermaSleeve®
Brady Material Number	B-345
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable
SAP B-Number	B-345
Diameter as Supplied (in/ft/yd)	0.125 in
Dimensions	0.235 in H
Dimensions 2	0.235 in H
Height (mm/cm/m)	6.00 mm
Maximum Service Temperature °F	437 °F
Maximum Wire Diameter (mm/cm/m)	2.80 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.062 in
Minimum Wire Gauge	20 AWG
Recovered Diameter (mm/cm/m)	1.6 mm
Roll Width (mm/cm/m)	50.8 mm
Sleeve Size (in/ft/yd)	0.125 in Dia x 2 in W
Sleeve Width (in/ft/yd)	2 in
Vertical Repeat	0.5 in
Web Width (mm/cm/m)	89.00 mm
Wire Gauge Range	20 AWG to 16 AWG

Brand Name	Brady®
Enables Industry Compliance	ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202G; NASA SP-R-0022A; SAE-AMS-DTL-23053; SAE-AS-81531
For Use with Printer	BBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll	500
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	BBP72
Quantity per Row	1
Ribbon Series	R4400
Suggested Ribbon Series	R4400W; R6800
Total Quantity	500
Adhesive (Y/N)	No
Indoor or Outdoor Use	Outdoor Use
Material	High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20 mm
Diameter as Supplied (mm/cm/m)	3.2 mm
Dimensions (Metric)	50.80 mm W x 6.00 mm H
Height (in/ft/yd)	0.235 in
Maximum Service Temperature °C	225 °C
Maximum Wire Diameter (in/ft/yd)	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	1.57 mm
Recovered Diameter (in/ft/yd)	0.062 in
Roll Width (in/ft/yd)	2 in
Size - Width (mm)	50.80 mm
Sleeve Size (mm/cm/m)	3.2 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)	50.8 mm
Vertical Repeat (mm)	12.70 mm
Wire Diameter Range	0.062 in to 0.11 in

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
Contains Heavy Metal(s)	Unavailable
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
