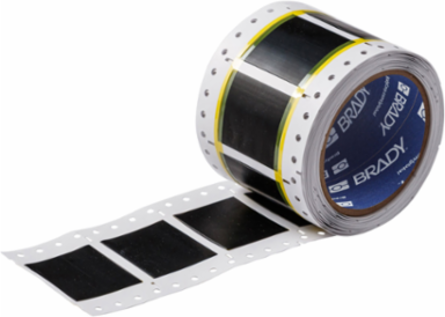

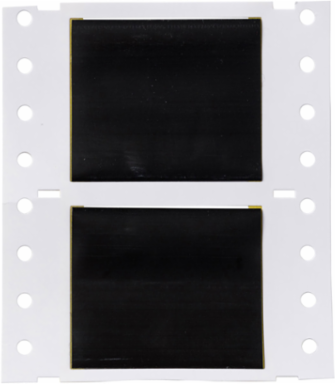

Brady 2HT-1000-2-BK-S High Temp PermaSleeve PVDF Wire Marking Sleeves, Black, 1" Dia x 2" W
- MPN: 2HT-1000-2-BK-S
- UPC: 662820922421
- PPN: BRD-2HT-1000-2-BK-S
- UNSPSC: 55121612
CAD
$1034.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
Features
- 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
- Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
- Operating temperature range of -67 to 437° F (-55 to 225° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP72
- Quantity per Roll
- 100
- Recommended Ribbon
- IP-R4400-WT; R4400-WT
- Shrink Ratio
- 2:1
- Total Qty per Pack
- 100 Label(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-345
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-345
- Diameter as Supplied (in/ft/yd)
- 1 in
- Dimensions
- 1.66 in H
- Dimensions 2
- 1.66 in H
- Height (mm/cm/m)
- 42.16 mm
- Maximum Service Temperature °F
- 437 °F
- Maximum Wire Diameter (mm/cm/m)
- 24.10 mm
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 11.40 mm
- Recovered Diameter (in/ft/yd)
- 0.45 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (mm/cm/m)
- 25.4 mm Dia x 50.8 mm W
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Vertical Repeat (mm)
- 50.80 mm
- Wire Diameter Range
- 0.45 in to 0.95 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202G; NASA SP-R-0022A; SAE-AMS-DTL-23053; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll100
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP72
Quantity per Row1
Ribbon SeriesR4400
Suggested Ribbon SeriesR4400W; R6800
Total Quantity100
Adhesive (Y/N)No
Indoor or Outdoor UseOutdoor Use
MaterialHigh Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)25.4 mm
Dimensions (Metric)50.80 mm W x 42.16 mm H
Height (in/ft/yd)1.66 in
Maximum Service Temperature °C225 °C
Maximum Wire Diameter (in/ft/yd)0.95 in
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.45 in
Minimum Wire Gauge2/0 AWG
Recovered Diameter (mm/cm/m)11.4 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)1 in Dia x 2 in W
Sleeve Width (in/ft/yd)2 in
Vertical Repeat0.2 in
Web Width (mm/cm/m)89.00 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
