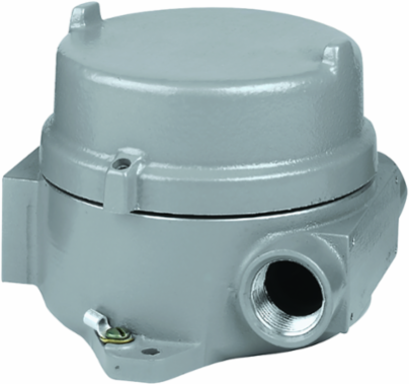

Killark HKB-B HK Series Instrument Enclosure, 6.5 Inch x 6.125 Inch x 4.75 Inch, Cast Aluminum, Explosion Proof
- MPN: HKB-B
- UPC: 783936295411
- PPN: HBL-HKB-B
- UNSPSC: 39121314
CAD
$469.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HK Series, 3-1/2 ID RD Body 3" DP & Flat Cover, Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, Type 4, Instrument Enclosure
Features
- Compact round body instrument enclosures with threaded blank screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and covers.
- Offset feed-thru conduit openings (3/4” NPT) for maximum use of interior volume.
- Interior "X”-configuration mounting pad for instrument/device cast into the bottom of the box provided for flexibility.
- Covers have shrouded tamper resistant set screws as standard.
- Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions. HKB box
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups A(suffix GA) B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Application | Instrumentation housed in HK Series enclosures typically used to measure, detect, monitor, transmit, and control industrial processes and systems. HK Series enclosures are suitable for a broad range of applications, meeting both domestic and international |
| Length | 6.5 in |
| Special Features | Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions. HKB box |
| Width | 6.125 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | STANDARD COVER HK |
| Harmonization Code | 7616995190 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D252 |
| CSA File Number | LR11716 |
| UL File Number | E83696 |
| Series | HK Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Dimensions | 6.5 in x 6.125 in x 4.75 in |
|---|---|
| Height | 4.75 in |
| Color | Gray |
| Size | 6.5 in x 6.125 in x 4.75 in |
| Type | Enclosure & Blank Cover |
| Cover Type | Threaded |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 3.04 |
| Material | Copper-free aluminum |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936295411 |
| NAICS Code | 3359326101 |
