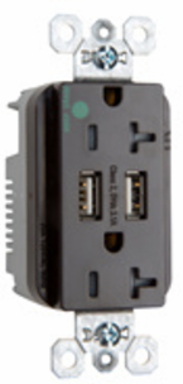

Pass & Seymour TR8300HUSB 20A 125V Hospital-Grade Tamper-Resistant Outlet with 3.1A USB, Brown
Pass & Seymour TR8300HUSB 20A 125V Hospital-Grade Tamper-Resistant Outlet with 3.1A USB, Brown
- MPN: TR8300HUSB
- UPC: 785007031829
- PPN: P-S-TR8300HUSB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$67.93/ EA
Description
Designed for the healthcare market and capable of withstanding heavy use due to its UL Hospital Grade certification. Features include an improved overall 3.1A USB charging capability, auto-ground clips, zinc-plated ground terminal screw, as well as triple-wipe brass contacts for lasting retention. The screw-pressure-plate back wiring makes installation fast and easy. Also available in black, green, gray, ivory, light almond, nickel, red and white. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices
- AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
- Multiple color options available.
- Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
- Stainless steel auto-ground clips assure positive ground.
Specifications
Specifications
- Depth
- 1.392 in
- Amperage
- 20.0 A
- Voltage
- 125.0 V
- Standard
- FEDSPEC
- USB Amperage
- 3.1 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Features
- USB-A Charging
- Outlet Type
- USB-Charging
- Outlet Type
- Hospital Grade
- Outlet Type
- Tamper-Resistant
- Application Sector
- Healthcare
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Color
- Brown
- Operating Temperature Min
- -40.0 °C
- Wire Connection Type
- Internal Pressure Plates
Height2.677 in
Width1.693 in
Country of OriginChina
Number of USBs2.0
USB Wattage15.0 W
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Is Tamper-ResistantYes
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Product LinePass & Seymour
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
