Weidmuller 2437630000 HS 2.1-6.4/25 MM W
- MPN: 2437630000
- PPN: WDM-2437630000
CAD
$0.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

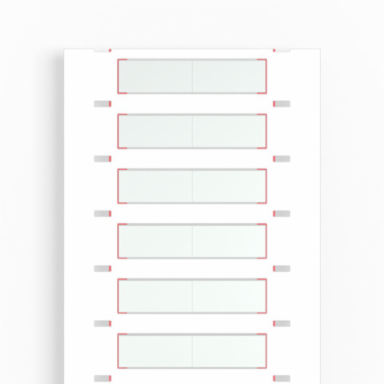

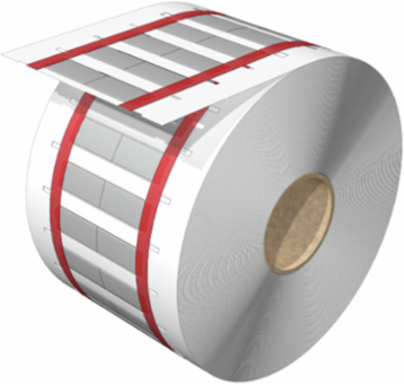

Conductor and cable markers, 2.1 - 6.4 mm, 25.4 x 10.7 mm, white
Specifications
General Data
- Colour
- white
- Material
- Polyolefine
- Operating temperature range
- -55...135 °C
- Width
- 10.7 mm
HalogenYes
Number per roll2,000
Recommended industriesPlant manufacture, Energy, Device manufacturer, Machinery
compatible printer2599430000 2599440000 1140490000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 10.7 mm
- Height
- 25.4 mm
- Depth
- 0.77 mm
- Net weight
- 0.3 g
Width (inches)0.421 inch
Height (inches)1 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 2.1 - 6.4 mm
- Conductor O.D., min.
- 2.1 mm
- Conductor cross-section, min.
- 1.5 mm²
- Rate of shrinkage
- 3:1
Conductor O.D., max.6.4 mm
Conductor cross-section, max.6 mm²
HalogenYes
Recommended shrinking temperature90 °C
