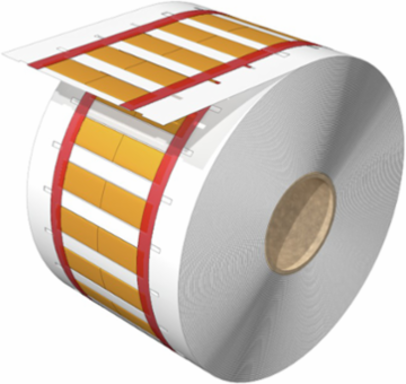

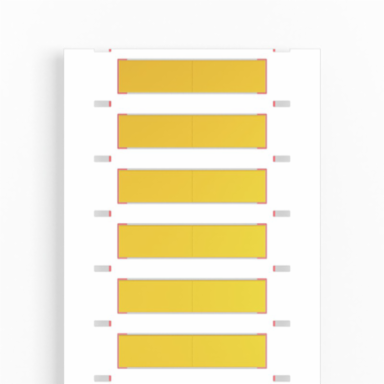

Weidmuller 2437640000 HS 2.1-6.4/25 MM Y
- MPN: 2437640000
- PPN: WDM-2437640000
CAD
$0.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Conductor and cable markers, 2.1 - 6.4 mm, 25.4 x 10.7 mm, yellow
Specifications
General Data
| Colour | yellow |
|---|---|
| Material | Polyolefine |
| Operating temperature range | -55...135 °C |
| Width | 10.7 mm |
| Halogen | Yes |
|---|---|
| Number per roll | 2,000 |
| Recommended industries | Plant manufacture, Energy, Device manufacturer, Machinery |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 10.7 mm |
|---|---|
| Height | 25.4 mm |
| Depth | 0.77 mm |
| Net weight | 0.3 g |
| Width (inches) | 0.421 inch |
|---|---|
| Height (inches) | 1 inch |
| Depth (inches) | 0.03 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 2.1 - 6.4 mm |
|---|---|
| Conductor O.D., min. | 2.1 mm |
| Conductor cross-section, min. | 1.5 mm² |
| Rate of shrinkage | 3:1 |
| Conductor O.D., max. | 6.4 mm |
|---|---|
| Conductor cross-section, max. | 6 mm² |
| Halogen | Yes |
| Recommended shrinking temperature | 90 °C |
