Weidmuller 2438020000 HS-HF 2.4-4.8/50 MM Y

  • MPN: 2438020000
  • PPN: WDM-2438020000

CAD

$1.08

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

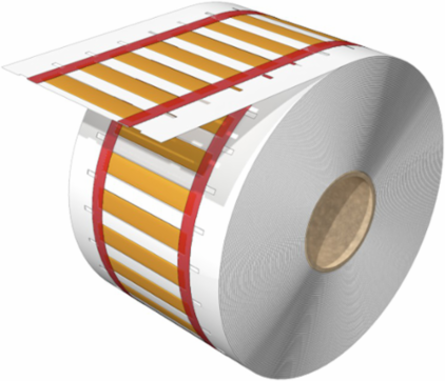

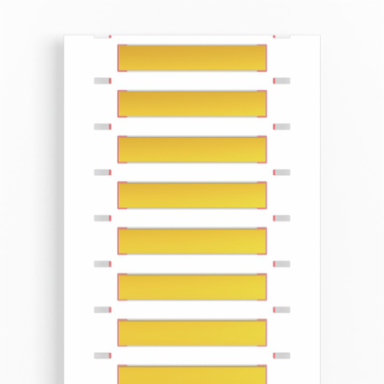

Conductor and cable markers, 2.4 - 4.8 mm, 50.8 x 7.6 mm, yellow

Documentation & Downloads

Specifications

General Data

Colouryellow
MaterialPolyolefine
Width7.6 mm
HalogenNo
Operating temperature range-55...105 °C
compatible printer2599430000 2599440000 1140490000

Approvals

ROHSConform

Dimensions And Weights

Width7.6 mm
Height50.8 mm
Depth0.77 mm
Net weight0.6 g
Width (inches)0.299 inch
Height (inches)2 inch
Depth (inches)0.03 inch

Classifications

ETIM 6.0EC001530
eClass 9.027-40-04-01
eClass 10.027-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01

Conductor And Cable Markers

Conductor O.D.2.4 - 4.8 mm
Conductor O.D., min.2.4 mm
Conductor cross-section, min.0.75 mm²
Rate of shrinkage2:1
Conductor O.D., max.4.8 mm
Conductor cross-section, max.4 mm²
HalogenNo
Recommended shrinking temperature90 °C
HS-HF 2.4-4.8/50 MM Y
HS-HF 2.4-4.8/50 MM Y
