Weidmuller

Weidmuller 2438070000 HS-HF 3.2-6.4/50 MM Y

  • MPN: 2438070000
  • PPN: WDM-2438070000

CAD

$1.36

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

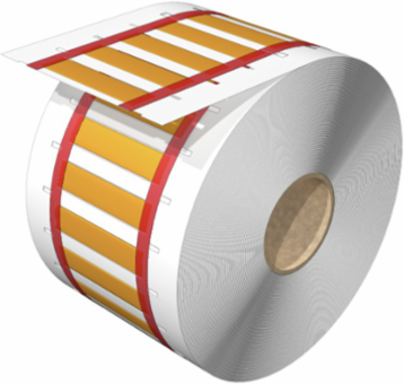

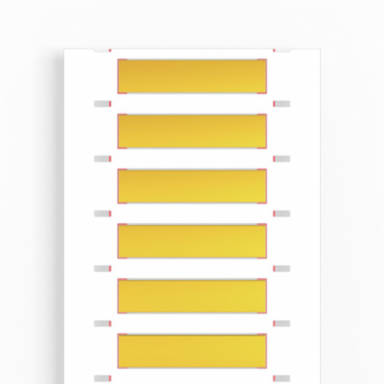

Conductor and cable markers, 3.2 - 6.4 mm, 50.8 x 10.7 mm, yellow

Documentation & Downloads

Specifications

General Data

Colouryellow
MaterialPolyolefine
Width10.7 mm
HalogenNo
Operating temperature range-55...105 °C
compatible printer2599430000 2599440000 1140490000

Approvals

ROHSConform

Dimensions And Weights

Width10.7 mm
Height50.8 mm
Depth0.77 mm
Net weight0.6 g
Width (inches)0.421 inch
Height (inches)2 inch
Depth (inches)0.03 inch

Classifications

ETIM 6.0EC001530
eClass 9.027-40-04-01
eClass 10.027-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01

Conductor And Cable Markers

Conductor O.D.3.2 - 6.4 mm
Conductor O.D., min.3.2 mm
Conductor cross-section, min.1.5 mm²
Rate of shrinkage2:1
Conductor O.D., max.6.4 mm
Conductor cross-section, max.6 mm²
HalogenNo
Recommended shrinking temperature90 °C
HS-HF 3.2-6.4/50 MM Y
HS-HF 3.2-6.4/50 MM Y
