Weidmuller 2438090000 HS-HF 4.8-9.5/25 MM W
- MPN: 2438090000
- PPN: WDM-2438090000
CAD
$1.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

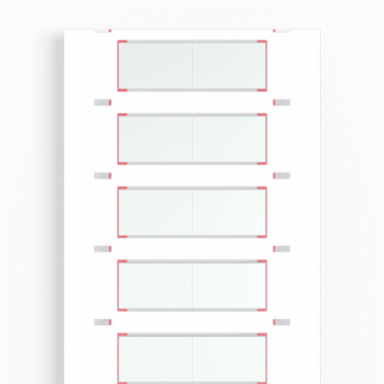

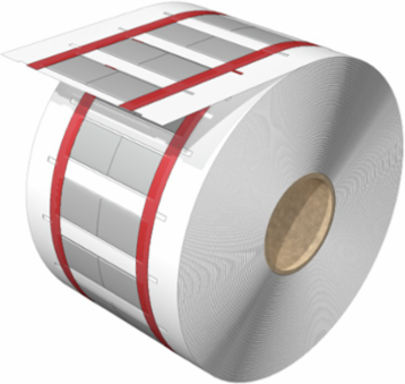

Conductor and cable markers, 4.8 - 9.5 mm, 25.4 x 15.1 mm, white
Documentation & Downloads
Specifications
General Data
| Colour | white |
|---|---|
| Material | Polyolefine |
| Width | 15.1 mm |
| Halogen | No |
|---|---|
| Operating temperature range | -55...105 °C |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 15.1 mm |
|---|---|
| Height | 25.4 mm |
| Depth | 0.77 mm |
| Net weight | 0.6 g |
| Width (inches) | 0.594 inch |
|---|---|
| Height (inches) | 1 inch |
| Depth (inches) | 0.03 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 4.8 - 9.5 mm |
|---|---|
| Conductor O.D., min. | 4.8 mm |
| Conductor cross-section, min. | 16 mm² |
| Rate of shrinkage | 2:1 |
| Conductor O.D., max. | 9.5 mm |
|---|---|
| Conductor cross-section, max. | 4 mm² |
| Halogen | No |
| Recommended shrinking temperature | 90 °C |
