Weidmuller 1505840000 HSS 0.8-2.4 EL W30M
Weidmuller 1505840000 HSS 0.8-2.4 EL W30M
- MPN: 1505840000
- PPN: WDM-1505840000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$243.96/ EA
Description

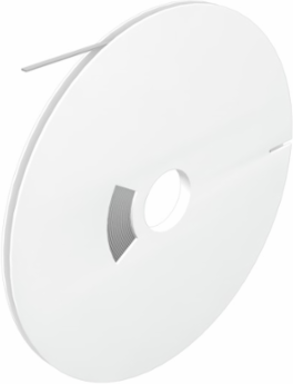

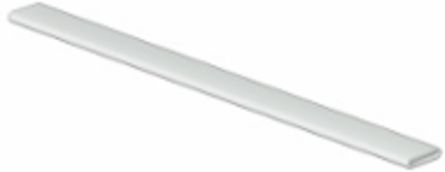

Conductor and cable markers, 0.8 - 2.4 mm, x 4.2 mm, white
Specifications
General Data
- Colour
- white
- Length
- 30,000 mm
- Operating temperature range
- -55...135 °C
- Width
- 4.2 mm
HalogenYes
MaterialPolyolefine
Recommended industriesPlant manufacture, Energy, Device manufacturer, Machinery
compatible printer2599430000 2599440000 1140490000
Approvals
- Approvals
- cURus
- UL File Number Search
- E366310
ROHSConform
Dimensions And Weights
- Length
- 30,000 mm
- Width
- 4.2 mm
- Depth
- 0.77 mm
- Net weight
- 160 g
Length (inches)1,181.1 inch
Width (inches)0.165 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 0.8 - 2.4 mm
- Conductor O.D., min.
- 0.8 mm
- Conductor cross-section, min.
- 0.25 mm²
- Rate of shrinkage
- 3:1
Conductor O.D., max.2.4 mm
Conductor cross-section, max.0.5 mm²
HalogenYes
Recommended shrinking temperature90 °C
