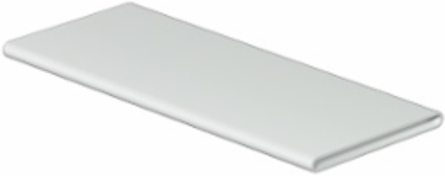

Weidmuller 1505890000 HSS 4.2-12.7 EL W30M
- MPN: 1505890000
- PPN: WDM-1505890000
CAD
$579.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

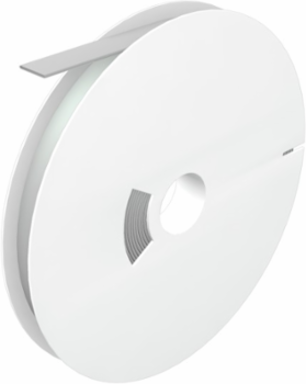

Conductor and cable markers, 4.2 - 12.7 mm, x 20.9 mm, white
Specifications
General Data
- Colour
- white
- Length
- 30,000 mm
- Operating temperature range
- -55...135 °C
- Width
- 20.9 mm
HalogenYes
MaterialPolyolefine
Recommended industriesPlant manufacture, Energy, Device manufacturer, Machinery
compatible printer2599430000 2599440000 1140490000
Approvals
- Approvals
- cURus
- UL File Number Search
- E366310
ROHSConform
Dimensions And Weights
- Length
- 30,000 mm
- Width
- 20.9 mm
- Depth
- 0.77 mm
- Net weight
- 260 g
Length (inches)1,181.1 inch
Width (inches)0.823 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 4.2 - 12.7 mm
- Conductor O.D., min.
- 4.2 mm
- Conductor cross-section, min.
- 6 mm²
- Rate of shrinkage
- 3:1
Conductor O.D., max.12.7 mm
Conductor cross-section, max.35 mm²
HalogenYes
Recommended shrinking temperature90 °C
