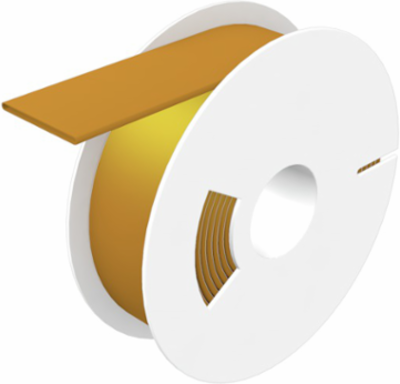

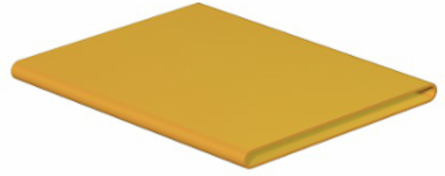

Weidmuller 1423290000 HSS-HF 12.7-25.4EL Y10M
- MPN: 1423290000
- PPN: WDM-1423290000
CAD
$328.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Conductor and cable markers, 12.7 - 25.4 mm, x 40.5 mm, yellow
Documentation & Downloads
Specifications
General Data
- Colour
- yellow
- Length
- 10,000 mm
- Number per roll
- 1
- Width
- 40.5 mm
HalogenNo
MaterialPolyolefine
Operating temperature range-55...105 °C
compatible printer2599430000 2599440000 1140490000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 10,000 mm
- Width
- 40.5 mm
- Depth
- 1.5 mm
- Net weight
- 570 g
Length (inches)393.7 inch
Width (inches)1.594 inch
Depth (inches)0.059 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 12.7 - 25.4 mm
- Conductor O.D., min.
- 12.7 mm
- Conductor cross-section, min.
- 35 mm²
- Rate of shrinkage
- 2:1
Conductor O.D., max.25.4 mm
Conductor cross-section, max.120 mm²
HalogenNo
Recommended shrinking temperature90 °C
