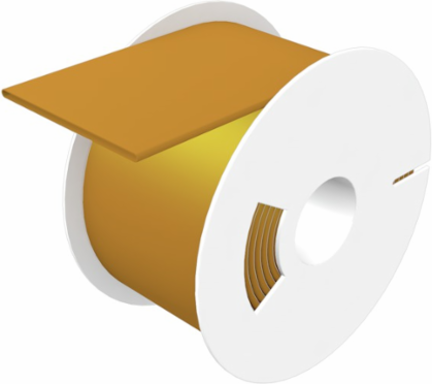

Weidmuller 1423320000 HSS-HF 25.4-50.8EL Y10M
- MPN: 1423320000
- PPN: WDM-1423320000
CAD
$761.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HSS-HF 25.4-50.8EL Y10M
Specifications
General Data
| Colour | Yellow |
|---|---|
| Material | Polyolefine |
| Operating temperature range | -55...105 °C |
| Width | 79.3 mm |
| compatible printer | 2448870000 |
| Length | 10,000 mm |
|---|---|
| Number per roll | 1 |
| Recommended industries | Transportation |
| compatible printer | 2430920000 |
| compatible printer | 1140490000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 10,000 mm |
|---|---|
| Width | 79.3 mm |
| Depth | 1.5 mm |
| Net weight | 1,260 g |
| Length (inches) | 393.7 inch |
|---|---|
| Width (inches) | 3.122 inch |
| Depth (inches) | 0.059 inch |
General Ordering Data
| Type | HSS-HF 25.4-50.8EL Y10M |
|---|---|
| Version | Conductor and cable markers, 25.4 - 50.8 mm, x 79.3 mm, Yellow |
| Qty. | 1 pc(s). |
| Order No. | 1423320000 |
|---|---|
| GTIN (EAN) | 4050118227659 |
Classifications
| ETIM 5.0 | EC001288 |
|---|---|
| eClass 6.2 | 27-40-04-01 |
| eClass 8.1 | 27-14-91-29 |
| eClass 9.1 | 27-40-04-01 |
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 7.1 | 27-14-91-29 |
| eClass 9.0 | 27-40-06-29 |
Conductor And Cable Markers
| Conductor O.D. | 25.4 - 50.8 mm |
|---|---|
| Conductor O.D., min. | 25.4 mm |
| Conductor cross-section, min. | 120 mm² |
| Rate of shrinkage | 2:1 |
| Conductor O.D., max. | 50.8 mm |
|---|---|
| Conductor cross-section, max. | 300 mm² |
| Halogen | No |
| Recommended shrinking temperature | 90 °C |
