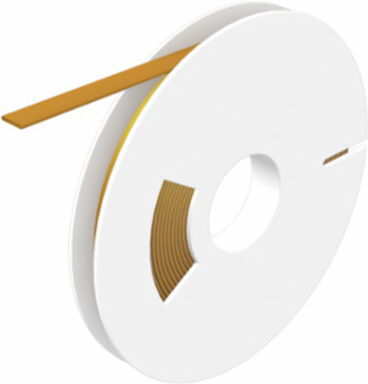

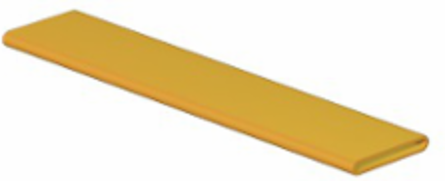

Weidmuller 1423250000 HSS-HF 3.2-6.4 EL Y13M
- MPN: 1423250000
- PPN: WDM-1423250000
CAD
$154.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Conductor and cable markers, 3.2 - 6.4 mm, x 10.7 mm, yellow
Documentation & Downloads
Specifications
General Data
- Colour
- yellow
- Length
- 13,000 mm
- Number per roll
- 1
- Width
- 10.7 mm
HalogenNo
MaterialPolyolefine
Operating temperature range-55...105 °C
compatible printer2599430000 2599440000 1140490000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 13,000 mm
- Width
- 10.7 mm
- Depth
- 0.9 mm
- Net weight
- 190 g
Length (inches)511.81 inch
Width (inches)0.421 inch
Depth (inches)0.035 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 3.2 - 6.4 mm
- Conductor O.D., min.
- 3.2 mm
- Conductor cross-section, min.
- 1.5 mm²
- Rate of shrinkage
- 2:1
Conductor O.D., max.6.4 mm
Conductor cross-section, max.6 mm²
HalogenNo
Recommended shrinking temperature90 °C
