Weidmuller 1563020000 HSS-HF 6.4-12.7 EL G30M
- MPN: 1563020000
- PPN: WDM-1563020000
CAD
$530.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

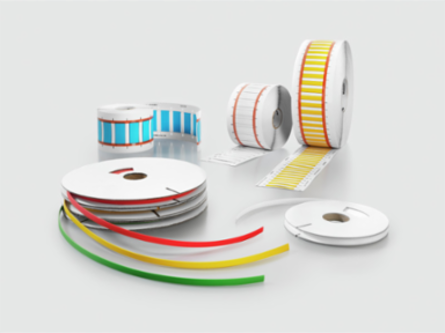

Conductor and cable markers, 6.4 - 12.7 mm, x 20.9 mm, green
Documentation & Downloads
Specifications
General Data
- Colour
- green
- Length
- 30,000 mm
- Number per roll
- 1
- Width
- 20.9 mm
HalogenNo
MaterialPolyolefine
Operating temperature range-55...105 °C
compatible printer2599430000 2599440000 1140490000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 30,000 mm
- Width
- 20.9 mm
- Depth
- 1.2 mm
- Net weight
- 740 g
Length (inches)1,181.1 inch
Width (inches)0.823 inch
Depth (inches)0.047 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 6.4 - 12.7 mm
- Conductor O.D., min.
- 6.4 mm
- Conductor cross-section, min.
- 6 mm²
- Rate of shrinkage
- 2:1
Conductor O.D., max.12.7 mm
Conductor cross-section, max.35 mm²
HalogenNo
Recommended shrinking temperature90 °C
