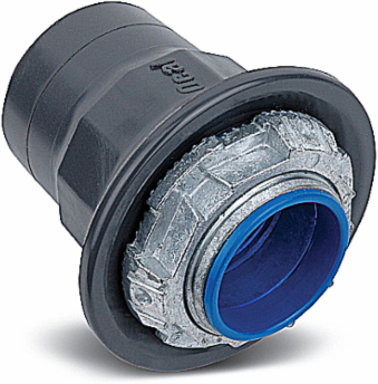

Ocal HUB3/4-CZ Hub Connector
- MPN: HUB3/4-CZ
- UPC: 704508037635
- PPN: T-B-HUB3/4-CZ
CAD
$52.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 3/4 Inch/21 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.78 Inch/19.81 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Features
- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Innovative sealing ring and groove.
- Hexagonal body and locknut design.
- Insulated throat and sharper and deeper teeth.
- Pressure sealing sleeves to protect the connection.
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Nominal size in inch
- 3/4 inch
- Revolving thread
- N
- Material housing
- Other
Nominal diameter21mm
ModelStraight
Construction typeExternal thread
Surface protectionOther
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Ocal
- Special Features
- Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation
- Standard
- CSA
- Material
- PVC Coated Zinc
- Temperature Rating
- 105 Degrees C
IGCC4441 Electrical fittings
TypeHub Connector
ApplicationTo Positively Bond Conduit to Box or Enclosure
Size3/4 Inch/21mm
ColorCarbon Zinc
Packaging
- Outer Quantity
- 50
- Weight Uom
- 0.33 lbs. Each
Outer Dimensions (inches)11.12x6.87x6.5
