Hub Connector
Ocal

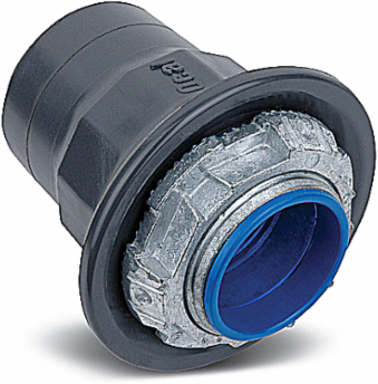

Ocal HUB1/2-G Hub Connector

  • MPN: HUB1/2-G
  • UPC: 704508388119
  • PPN: T-B-HUB1/2-G

CAD

$87.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1/2 Inch/16 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.59 Inch/14.99 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Features

  • Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
  • Innovative sealing ring and groove.
  • Hexagonal body and locknut design.
  • Insulated throat and sharper and deeper teeth.
  • Pressure sealing sleeves to protect the connection.

Documentation & Downloads

Specifications

European Specifications (ETIM)

ETIM
EC001180 Screw connection for protective metallic hose
Nominal size in inch
1/2 inch
Revolving thread
N
Material housing
Other
Nominal diameter16mm
ModelStraight
Construction typeExternal thread
Surface protectionOther

Packaging

Outer Quantity
100
Weight Uom
0.21 lbs. Each
Outer Dimensions (inches)13.5x7.5x7.62

North American Specifications (UNSPSC)

UNSPSC
39121311 Electrical fittings
Brand Name
Ocal
Special Features
Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation
Standard
CSA
Material
PVC Coated Zinc
Temperature Rating
105 Degrees C
IGCC4441 Electrical fittings
TypeHub Connector
ApplicationTo Positively Bond Conduit to Box or Enclosure
Size1/2 Inch/16mm
ColorDark Gray
