Hub Connector
Ocal

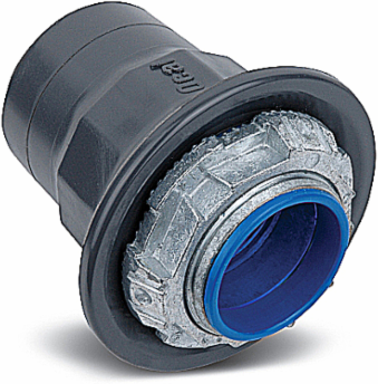

Ocal HUB3/4SA-G Hub Connector

  • MPN: HUB3/4SA-G
  • UPC: 070450838867
  • PPN: T-B-HUB3/4SA-G

CAD

$150.17

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

PVC Coated Aluminum Hub Connector with Thermoplastic Insulated Throat, Pipe Size 3/4 Inch/21 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.78 Inch/19.81 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Features

  • Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
  • Innovative sealing ring and groove.
  • Hexagonal body and locknut design.
  • Insulated throat and sharper and deeper teeth.
  • Pressure sealing sleeves to protect the connection.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121311 Electrical fittings
Brand Name
Ocal
Special Features
Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation
Size
3/4 Inch/21mm
Color
Dark Gray
IGCC4441 Electrical fittings
TypeHub Connector
ApplicationTo Positively Bond Conduit to Box or Enclosure
MaterialPVC Coated Aluminum
Temperature Rating105 Degrees C

European Specifications (ETIM)

ETIM
EC001180 Screw connection for protective metallic hose
Nominal size in inch
3/4 inch
Revolving thread
N
Material housing
Other
Nominal diameter21mm
ModelStraight
Construction typeExternal thread
Surface protectionOther

Packaging

Inner Dimensions (inches)
xx
Outer Dimensions (inches)
12x7x7
Outer Quantity50
Weight Uom15 lbs. per 100
