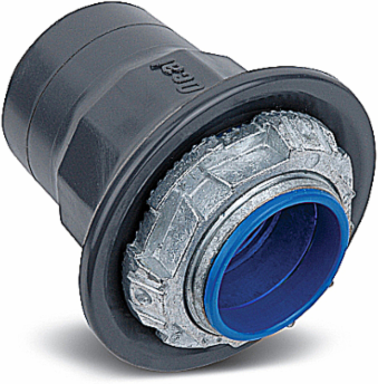

Ocal HUB11/4-G Hub Connector
- MPN: HUB11/4-G
- UPC: 704508388317
- PPN: T-B-HUB11/4-G
CAD
$143.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/4 Inch/35 Metric, Overall Diameter 2.38 Inch/60.45 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.31 Inch/33.27 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Features
- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Innovative sealing ring and groove.
- Hexagonal body and locknut design.
- Insulated throat and sharper and deeper teeth.
- Pressure sealing sleeves to protect the connection.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Ocal |
| Special Features | Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation |
| Standard | CSA |
| Material | PVC Coated Zinc |
| Temperature Rating | 105 Degrees C |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Hub Connector |
| Application | To Positively Bond Conduit to Box or Enclosure |
| Size | 1-1/4 Inch/35mm |
| Color | Dark Gray |
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal size in inch | 1 1/4 inch |
| Revolving thread | N |
| Material housing | Other |
| Nominal diameter | 35mm |
|---|---|
| Model | Straight |
| Construction type | External thread |
| Surface protection | Other |
Packaging
| Inner Dimensions (inches) | xx |
|---|---|
| Outer Dimensions (inches) | 14x8x8 |
| Outer Quantity | 30 |
|---|---|
| Weight Uom | 71 lbs. per 100 |
