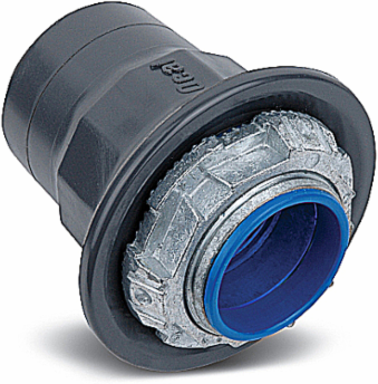

Ocal HUB11/4SA-G Hub Connector
- MPN: HUB11/4SA-G
- UPC: 704508388355
- PPN: T-B-HUB11/4SA-G
CAD
$234.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Coated Aluminum Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/4 Inch/35 Metric, Overall Diameter 2.38 Inch/60.45 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.31 Inch/33.27 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Features
- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Innovative sealing ring and groove.
- Hexagonal body and locknut design.
- Insulated throat and sharper and deeper teeth.
- Pressure sealing sleeves to protect the connection.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Ocal
- Special Features
- Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation
- Size
- 1-1/4 Inch/35mm
- Color
- Dark Gray
IGCC4441 Electrical fittings
TypeHub Connector
ApplicationTo Positively Bond Conduit to Box or Enclosure
MaterialPVC Coated Aluminum
Temperature Rating105 Degrees C
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Nominal size in inch
- 1 1/4 inch
- Revolving thread
- N
- Material housing
- Other
Nominal diameter35mm
ModelStraight
Construction typeExternal thread
Surface protectionOther
Packaging
- Inner Dimensions (inches)
- xx
- Outer Dimensions (inches)
- 13.125x7.125x7.375
Outer Quantity30
Weight Uom80 lbs. per 100
