Ocal HUB21/2SA-G Hub Connector
- MPN: HUB21/2SA-G
- UPC: 704508388560
- PPN: T-B-HUB21/2SA-G
CAD
$336.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

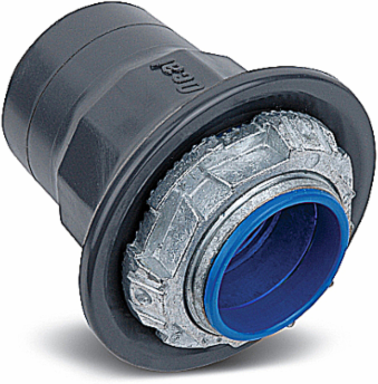

PVC Coated Aluminum Hub Connector with Thermoplastic Insulated Throat, Pipe Size 2-1/2 Inch/63 Metric, Overall Diameter 3.75 Inch/95.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.41 Inch/61.21 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Ocal |
| Special Features | Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation |
| Size | 2-1/2 Inch/63mm |
| Color | Dark Gray |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Hub Connector |
| Application | To Positively Bond Conduit to Box or Enclosure |
| Material | PVC Coated Aluminum |
| Temperature Rating | 105 Degrees C |
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal size in inch | 2 1/2 inch |
| Revolving thread | N |
| Material housing | Other |
| Nominal diameter | 63mm |
|---|---|
| Model | Straight |
| Construction type | External thread |
| Surface protection | Other |
Packaging
| Inner Dimensions (inches) | xx |
|---|---|
| Outer Dimensions (inches) | 14.875x13x6.75 |
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 1 lbs. Each |
