Thomas & Betts H075A Hub Connector
- MPN: H075A
- UPC: 786210898421
- PPN: T-B-H075A
CAD
$32.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

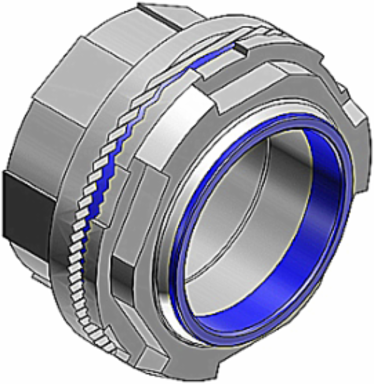

3/4 Inch Aluminum, Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | T&B |
| Special Features | Sealing Ring and Groove with Innovative Profile Better Than Standard O-Ring |
| Standard | UL E23018, CSA |
| Material | Aluminum |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Hub Connector |
| Application | To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure |
| Size | 3/4 Inch |
| Temperature Rating | 105 Degrees C |
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Model | Straight |
| Connection type screw connection to housing | Thread |
| Material housing | Other |
| Nominal size in inch | 3/4 inch |
|---|---|
| Revolving thread | N |
| Thread type | NPT |
Packaging
| Inner Quantity | 25 |
|---|---|
| Outer Dimensions (inches) | 17x10.5x4.5 |
| Outer Quantity | 100 |
|---|---|
| Weight Uom | 11.5 lbs. per 100 |
