Klein Tools CL320KIT HVAC Electrical Test Kit, 400A Clamp Meter, Dual IR Thermometer, NCVT Tester
- MPN: CL320KIT
- UPC: 092644693496
- PPN: KLT-CL320KIT
- UNSPSC: 41113654
CAD
$177.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

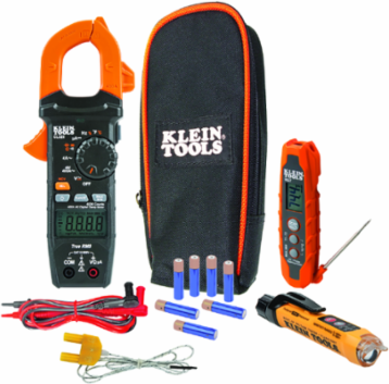

Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.
Features
- HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight

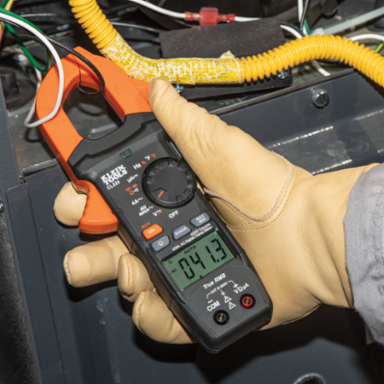

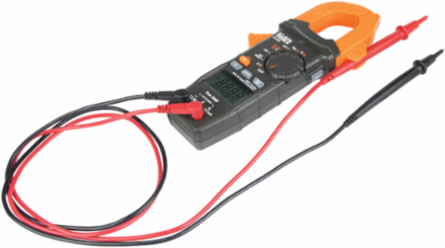

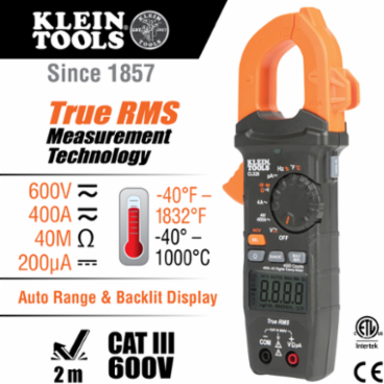

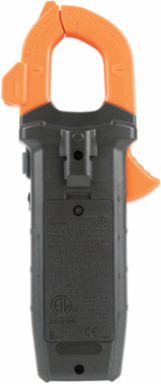

- Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

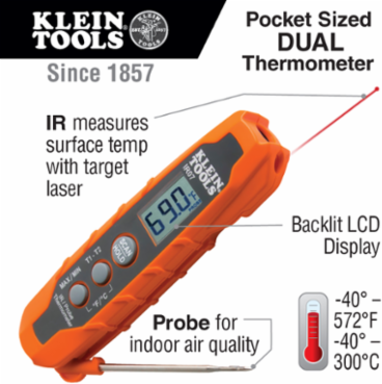

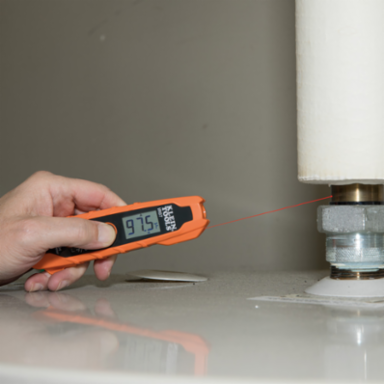

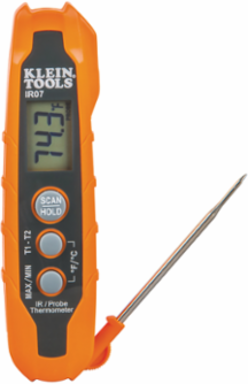

- Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)

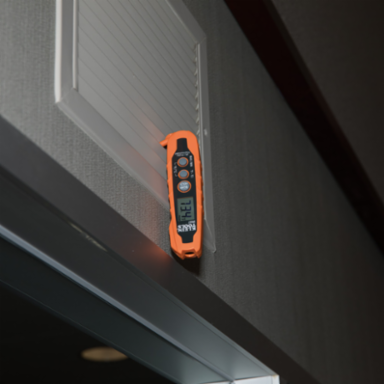

- Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures

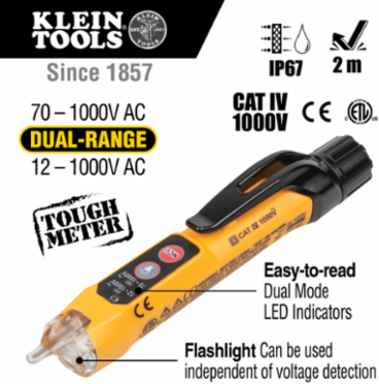

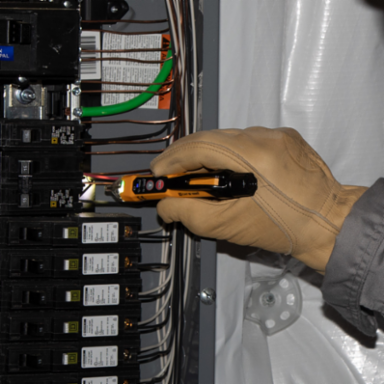

- Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
- Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
- IR07 Thermometer is not a medical device and is NOT intended for use on people or animals
- Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature
Documentation & Downloads
Specifications
Key Specifications
- Standard
- Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000
- Voltage
- Cat. No. CL320 - 600V AC/DC; Cat. No. NCVT3P - 1000V AC
- Included
- CL320 Digital Clamp Meter with Test Leads and Thermocouple; IR07 Dual IR and Probe Thermometer; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; Carrying Pouch; Instructions; and All Required Batteries
- Application
- HVAC Electrical and Temperature Testing
- Functions
- TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
- DC Voltage
- 600V
- Current
- 400 A AC
- DC Micro-Amp
- 200 μA
- Capacitance
- 4000 µF
- DC Polarity Indicator
- Yes
- Auto Ranging
- Yes
- Overall Height
- 3.8 cm (1.5 Inch)
- Overall Length
- 21.5 cm (8.45 Inch)
- Height
- 3.2500 in
- Depth
- 11.0000 in
Drop Protection6.6' (2 m)
Display4000 Count Backlit LCD
TypeHVAC Testers
Batteries7 x AAA
MaterialABS/Electronics
AC Voltage600V
Frequency10 Hz to1 MHz
Ohms40MO Resistance
Auto-Power OffYes
Temperature Range-40° to 1832°F (-40° to 1000°C)
TRMSYes
Overall Width3.5 Inch (8.9 cm)
Jaw Size4.1 cm (1.6 Inch)
Width4.5000 in
Weight1.6500 lbs
