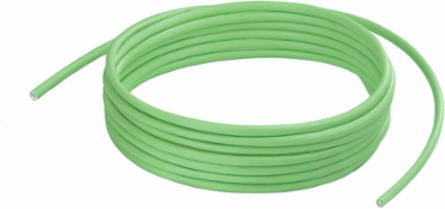

Weidmuller 8813160000 IE-5IC4x2xAWG24/1-PUR
- MPN: 8813160000
- PPN: WDM-8813160000
CAD
$473.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Installation cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 100 m
Documentation & Downloads
Specifications
Electrical Properties
| Insulation strength | 5000 MΩ |
|---|

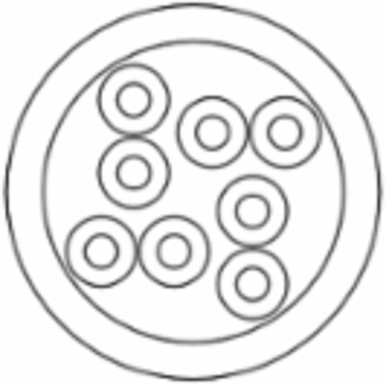

Cable Structure
| Wire material | Non-insulated copper wire |
|---|---|
| Strands | 1 |
| Insulation | PE |
| Number of wires | 8 |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Aluminium foil, Shielding braid made from copper wiring |
| Sheath diameter, min. | 6.3 mm |
| Sheathing colour | green (RAL 6018) |
| Standard designations | IE-5IC4x2xAWG24/1-PUR 02YS(ST)C11Y, SF/UTP |
|---|---|
| Cross-section | 4*2*AWG 24/1 - 4*2*0.205 mm² |
| Insulation cross-section | 1 mm |
| Arrangement of wire cores | Twisted pair |
| Shielding | SF/UTP |
| Material sheath | PUR |
| Sheath diameter, max. | 6.7 mm |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Colour | green |
|---|---|
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Abrasion resistance | very good |
| Resistance to oils | in accordance with IEC 60811-2-1 |
Dimensions And Weights
| Length | 100 m |
|---|---|
| Net weight | 4,544 g |
| Length (inches) | 3.937 inch |
|---|---|
| Insulation cross-section | 1 mm |
Standards
| Generic communication cable facilities | EN 50173-1:2007, ISO / IEC 11801:2002 |
|---|
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
| UNSPSC | 26-12-16-06 |
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
|---|---|
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Deviation | 15 ns/100m |
| Insulation strength | 5000 MΩ |
| Signal propagation time | 4.5 ns/m |
| Test voltage: wire-wire-shield | 700 V AC |
|---|---|
| Loop resistance | 190 Ω/km |
| Transfer impedance | 10 mΩ/m at 10 MHz |
| Capacity at 1 kHz | 50 nF/km |
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -15 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
