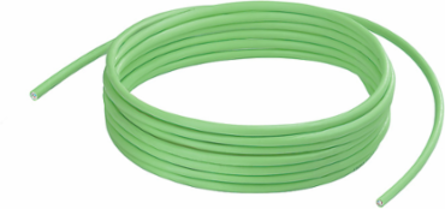

Weidmuller 8813150000 IE-5IC4x2xAWG24/1-PVC
- MPN: 8813150000
- PPN: WDM-8813150000
CAD
$278.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Installation cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 100 m
Documentation & Downloads
Specifications
Electrical Properties
| Insulation strength | 500,000 Ω |
|---|

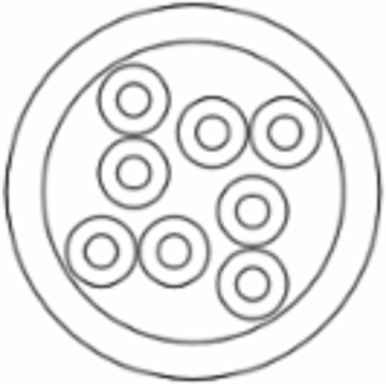

Cable Structure
| Wire material | Non-insulated copper wire |
|---|---|
| Strands | 1 |
| Insulation | PE |
| Wire core insulation thickness | 0.25 mm |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Complete shielding | Aluminium foil, Shielding braid made from copper wiring |
| Overlap of shielding braid | 65 % |
| Sheath diameter, min. | 5.7 mm |
| Sheathing material thickness | 0.55 mm |
| Standard designations | IE-5CC4x2xAWG26/7-PVC LI02YS(ST)CY, SF/UTP |
|---|---|
| Cross-section | 4*2*AWG 24/1 - 4*2*0.205 mm² |
| Insulation cross-section | 1 mm |
| Number of wires | 8 |
| Diameter of wire pair | 2 mm |
| Shielding | SF/UTP |
| Shielding braid thickness | 0.1 mm |
| Material sheath | PVC |
| Sheath diameter, max. | 6.3 mm |
| Sheathing colour | green (RAL 6018) |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Colour | green |
|---|---|
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Abrasion resistance | good |
| Fire propagation | No |
Dimensions And Weights
| Length | 100 m |
|---|---|
| Net weight | 4,720 g |
| Length (inches) | 3.937 inch |
|---|---|
| Insulation cross-section | 1 mm |
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
| UNSPSC | 26-12-16-06 |
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
|---|---|
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Deviation | 40 ns/100m |
| Transfer impedance | 10 mΩ/m at 10 MHz |
| Capacity at 1 kHz | 47 nF/km |
| Test voltage: wire-wire-shield | 700 V AC |
|---|---|
| Loop resistance | 290 Ω/km |
| Resistance differential | 3 % |
| Insulation strength | 500,000 Ω |
| Signal propagation time | 4.85 ns/m |
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -15 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
