Weidmuller 1296710000 IE-BHS-V14M-RJA-45
- MPN: 1296710000
- PPN: WDM-1296710000
CAD
$45.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

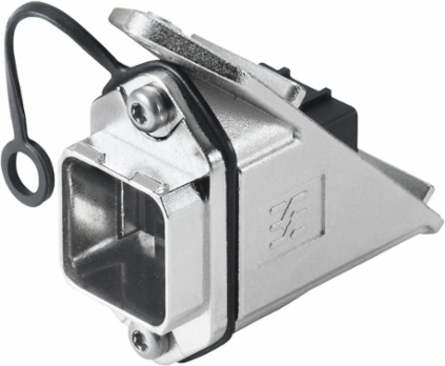

Empty enclosure, Flange, angled
Documentation & Downloads
Specifications
General Data
| Housing main material | Zinc diecast |
|---|---|
| Seal material | EPDM |
| Protection degree | IP67 |
|---|---|
| Type of mounting | 2 screws, M3 (not included) |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E316369 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 81.659 g |
|---|
Standards
| Certificate no. (cULus) | E316369 |
|---|
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-02 |
| eClass 10.0 | 27-18-27-02 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-02 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
