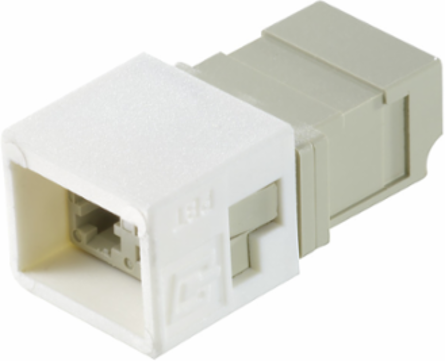

Weidmuller 1964420000 IE-BI-LCD-MM-C
- MPN: 1964420000
- PPN: WDM-1964420000
CAD
$44.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LC insert, Bulkhead insert LC duplex, multimode
Documentation & Downloads
Specifications
General Data
| Configuration | Connector and flange insert for variant 1, 4 and 14 housings |
|---|---|
| Description of article | Bulkhead insert LC duplex, multimode |
| Housing main material | PBT diecast zinc |
| Insertion loss | ≤ 0.4 dB |
| Protection degree | IP67 with housing |
| Connection 1 | LC Duplex |
|---|---|
| Fibre type | Multimode |
| Humidity | 0...85 % rel. humidity |
| Plugging cycles | 1000 |
| Return loss (attenuation) | ≥ 30 dB |
Approvals
| ROHS | Conform |
|---|

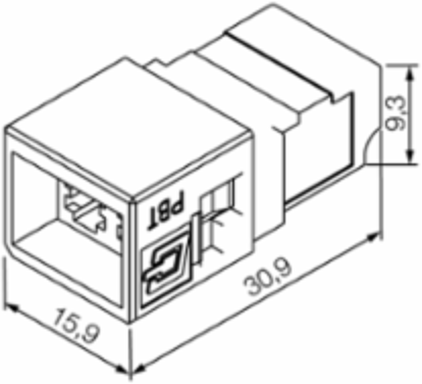

Dimensions And Weights
| Net weight | 14.1 g |
|---|
Standards
| Connector standard | IEC 61754-20 |
|---|
Classifications
| ETIM 6.0 | EC001122 |
|---|---|
| eClass 9.0 | 19-17-01-22 |
| eClass 10.0 | 19-17-01-22 |
| ETIM 7.0 | EC001122 |
|---|---|
| eClass 9.1 | 19-07-01-22 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Humidity | 0...85 % rel. humidity |
|---|---|
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
