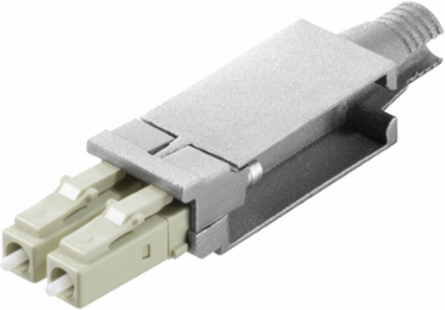

Weidmuller 1962780000 IE-PI-2LC-MM
- MPN: 1962780000
- PPN: WDM-1962780000
CAD
$53.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LC insert, Plug insert 2 LC, multimode
Documentation & Downloads
Specifications
General Data
- Configuration
- Connector and flange insert for variant 1, 4 and 14 housings
- Connection 2
- Crimp
- Fibre type
- Multimode
- Humidity
- 0...85 % rel. humidity
- Plugging cycles
- 1000
- Return loss (attenuation)
- ≥ 30 dB
Connection 1LC
Description of articlePlug insert 2 LC, multimode
Housing main materialPBT diecast zinc
Insertion loss≤ 0.4 dB
Protection degreeIP67 with housing
Approvals
- Approvals
- EAC
ROHSConform

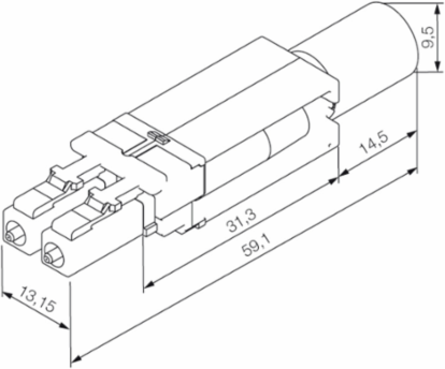

Dimensions And Weights
- Net weight
- 21.4 g
Standards
- Connector standard
- IEC 61754-20
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
UNSPSC30-21-18-01
Temperatures
- Humidity
- 0...85 % rel. humidity
- Operating temperature, min.
- -40 °C
Operating temperature, max.70 °C
Operating temperature-40 °C...70 °C
