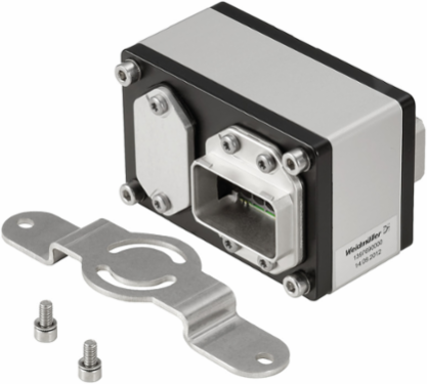

Weidmuller 1397690000 IE-CD-VAPM24V-C-MA
- MPN: 1397690000
- PPN: WDM-1397690000
CAD
$479.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Coupling, FreeCon, Supply, IP65, If thread-locking fluid is used
Documentation & Downloads
Specifications
General Data
| Housing main material | Aluminium profile, Cover: die-cast zinc, nickel plated |
|---|---|
| Protection degree | IP65, If thread-locking fluid is used |
| Plugging cycles | ≥ 100 |
|---|---|
| UL 94 flammability rating | V-0 |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E316369 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 425.36 g |
|---|
Standards
| Connector standard | in accordance with PROFINET specification |
|---|
| Certificate no. (cULus) | E316369 |
|---|
Classifications
| ETIM 6.0 | EC001264 |
|---|---|
| eClass 9.0 | 19-17-01-23 |
| eClass 10.0 | 19-17-01-23 |
| ETIM 7.0 | EC001264 |
|---|---|
| eClass 9.1 | 19-17-01-25 |
Technical Specifications For Power Connector
| Cable seal material (power connector) | TPE |
|---|---|
| Contact material (power connector) | Copper alloy |
| Current capacity at 50 °C (power connector) | 16 A @ 20 °C |
| Interlock type (power connector) | Push Pull |
| Plugging cycles (power connector) | ≤ 100 |
| Seal material (power connector) | NBR |
| Colour (power connector) | Silver grey |
|---|---|
| Contact surface (power connector) | Gold over nickel |
| Housing base material (power connector) | Zinc diecast, nickel-plated |
| Nominal voltage (power connector) | 24 V |
| Pollution degree (power connector) | 2 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
