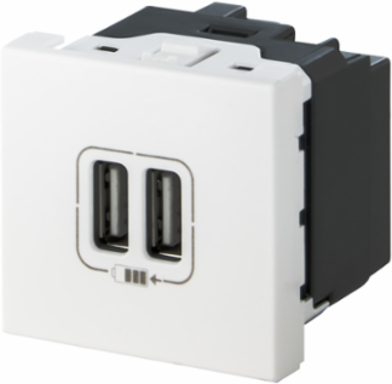

Weidmuller 2505070000 IE-FCI-PWB-2USB-A-5V
- MPN: 2505070000
- PPN: WDM-2505070000
CAD
$113.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FrontCom, Insert Power large, USB charger
Documentation & Downloads
Specifications
Electrical Properties
| Degree of efficiency | 81 % |
|---|
General Data
| Insert type | Insert Power large |
|---|
| Protection degree | IP20 |
|---|
Approvals
| ROHS | Conform |
|---|

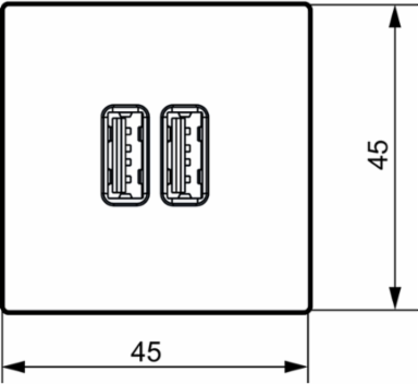

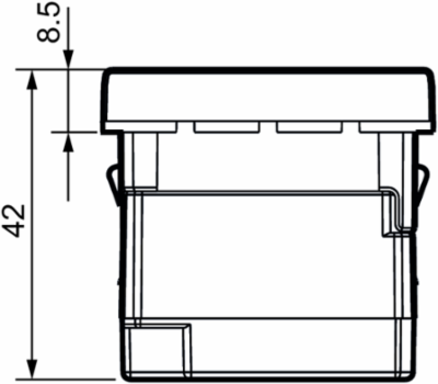

Dimensions And Weights
| Net weight | 52.352 g |
|---|
Clampable Conductors
| Conductor connection cross-section, extremely flexible with wire end ferrule | 1.5 ... 2.5 mm² |
|---|---|
| Conductor connection cross-section, rigid | 1.5 ... 2.5 mm² |
| Type of connection | Screw connection |
| Conductor connection cross-section, flexible with wire end ferrule | 1.5 ... 2.5 mm² |
|---|---|
| Stripping length | 6 mm |
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-90 |
| eClass 10.0 | 27-44-03-90 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-18-90-90 |
| UNSPSC | 31-16-23-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 45 °C |
|---|---|
| Operating temperature | 0 °C...45 °C |
| Operating temperature, min. | 0 °C |
|---|
