Weidmuller 1487920000 IE-BI-USB-3.0-A
- MPN: 1487920000
- PPN: WDM-1487920000
CAD
$30.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

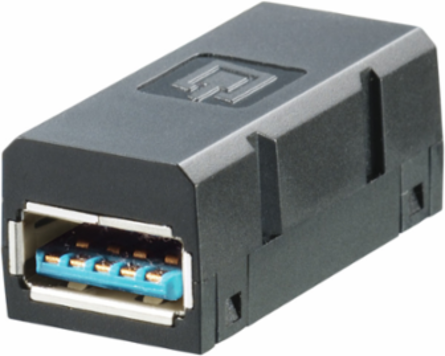

USB insert, Flange insert, type A
Documentation & Downloads
Specifications
Electrical Properties
- Contact resistance
- ≤ 30 mΩ
- Dielectric strength, contact / shield
- ≥ 500 V DC
Current-carrying capacity up to 90 °C3 A
Insulation strength≥ 1000 MΩ
General Data
- Product type
- USB insert
Protection degreeIP67 with housing
Approvals
- Approvals
- CULUS, DNV GL
- UL File Number Search
- E471884
ROHSConform
Dimensions And Weights
- Net weight
- 1.1 g
Standards
- Connector standard
- IEC 61076-3-107
- Certificate no. (cULus)
- E471884
Certificate No. (GERMLLOYD)13866-15
General Info
- Connection 1
- USB A
- Description of article
- Flange insert, type A
- Colour
- black
- Housing main material
- PC UL 94 V0
- Protection degree
- IP67 with housing
Connection 2USB A
WiringType A
Humidity0...93 % rel. humidity
Shielding360° all-round enclosure
Plugging cycles≥ 1500
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-90
- eClass 10.0
- 27-44-03-90
ETIM 7.0EC001121
eClass 9.127-44-09-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 0...93 % rel. humidity
- Operating temperature, min.
- -40 °C
Operating temperature, max.70 °C
Operating temperature-40 °C...70 °C
