Weidmuller 1018840000 IE-FCM-USB-A
- MPN: 1018840000
- PPN: WDM-1018840000
CAD
$39.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

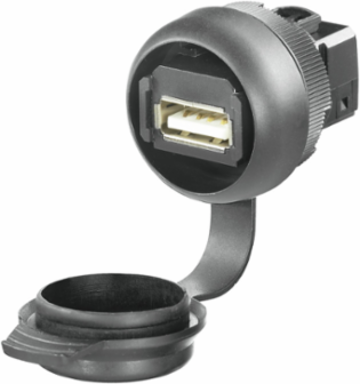

FrontCom Micro USB coupling, USB 2.0, Type A
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS, EAC |
|---|---|
| UL File Number Search | E316369 |
| ROHS | Conform |
|---|

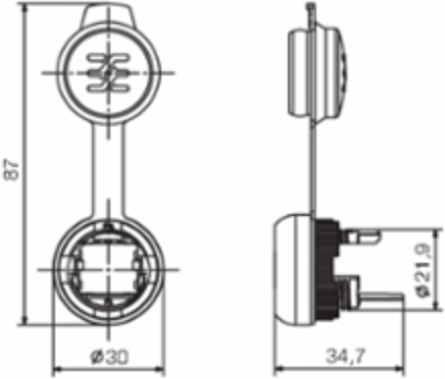

Dimensions And Weights
| Wall thickness, max. | 3 mm |
|---|---|
| Net weight | 2.3 g |
| Wall thickness, min. | 1 mm |
|---|
Standards
| Connector standard | IEC 61076-3-107 |
|---|
| Certificate no. (cULus) | E316369 |
|---|
General Info
| Connection 1 | USB A |
|---|---|
| Description of article | FrontCom Micro USB coupling, USB 2.0 |
| Colour | black |
| Type of mounting | Cabinet, Distribution box |
| Protection degree | IP65, in closed state |
| Tightening torque fixing nut | 2 Nm |
| Connection 2 | USB A |
|---|---|
| Wiring | Type A |
| Housing main material | PA UL 94 V0 |
| Shielding | 360° shield contact |
| Plugging cycles | ≥ 1500 |
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-90 |
| eClass 10.0 | 27-44-03-90 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-18-90-90 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
